Product Details:
|
| Type: | N | Model Number: | CS4N65A4 |
|---|---|---|---|
| ID: | 4A | VDSS: | 650V |
| RDSON-typ （@VGS=10V）: | 2.2Ω | Gate-Source Voltage (Vgs): | ±30V |
| Highlight: | Power Supplies High Voltage MOSFET,4A650V High Voltage MOSFET,N Type High Voltage MOSFET |
||

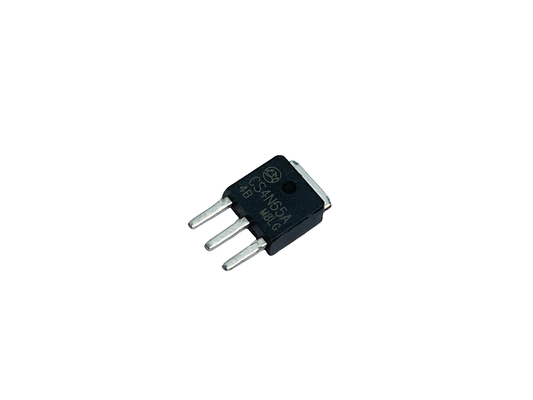

4A650V CS4N65A4 High Voltage MOSFET N Type For Power Supplies TO-251
| Part Number |
Package | Channel | ID (A) |
VDSS (V) |
VGSS (V) |
VGS(th)(V) | RDS(ON) 10V(mΩ) |
Qg (nC) |
Ciss (pF) |
||
| Min. | Min. | Min. | Max. | Typ | MAX | Typ | Typ | ||||
| CS4N65A4 | TO-251 | N | 4 | 650 | ±30 | 2 | 4 | 2220 | 2570 | ||
Our High Voltage MOSFET is a type N MOSFET that boasts low ON resistance, allowing it to efficiently handle high currents without overheating. The MOSFET also underwent 100% avalanche testing, ensuring its durability and reliability under extreme conditions. Additionally, it features low Ciss, making it ideal for high-speed switching circuits.
One of the key features of our High Voltage MOSFET is its fast switching capability, making it perfect for high-speed switching applications. This makes it ideal for use in lighting applications, such as LED lighting, where fast switching speeds are essential.
Overall, our High Voltage MOSFET is a reliable and efficient solution for various power circuit applications that require high voltage capacity and fast switching speeds. Its low ON resistance and low Ciss make it an excellent choice for power factor correction applications, while its fast switching capability makes it perfect for lighting applications. With our MOSFET technology, you can rest assured that your power circuits will operate efficiently and reliably.
| Attribute | Description |
|---|---|
| Application | Power Switch Circuit Of Adaptor And Charger, Switch Mode Power Supply, Uninterruptible Power Supply, Power Factor Correction |
| Voltage | High Voltage |
| High Light | Low ON Resistance, 100% Avalanche Tested, Low Ciss, Fast Switching |
| Type | N |
| Model Number | CS4N65A4 |
| Gate-Source Voltage (Vgs) | ±30V |
| PWM in motor control | High Efficiency |
| Audio Amplifiers | Not specified |
The High Voltage MOSFET product is designed for power switch circuits of adaptors and chargers, switch mode power supply, uninterruptible power supply, and power factor correction. The High Voltage MOSFET has a Gate-Source Voltage (Vgs) of ±30V and is a type N. The product is ideal for applications such as DC-DC converters, LED drivers, and other circuits that require high voltage.
The High Voltage MOSFET has low ON resistance, which ensures that there is less power loss when current flows through the circuit. The product is 100% avalanche tested, which means that it can withstand high voltage spikes without damage. The Low Ciss ensures that there is less capacitance between the input and output, which means that there is less interference in the circuit. The fast switching capability of the High Voltage MOSFET makes it ideal for circuits that require quick switching times.
Our Lingxun High Voltage MOSFET product is designed and manufactured in China, with ISO9001, ISO14001, ROHS, and REACH certifications. The minimum order quantity and price will be confirmed based on the part number selected. The packaging details will also vary based on the part number. Our supply ability is 600KK/year, and the delivery time will be confirmed upon order placement.
The Lingxun High Voltage MOSFET product features low ON resistance, 100% avalanche tested, low Ciss, and fast switching. With a Gate-Source Voltage (Vgs) of ±30V, it is a type N MOSFET technology suitable for power switch circuits of adaptors and chargers, switch mode power supplies, uninterruptible power supplies, and power factor correction.
Our product customization services allow for specific modifications to meet your unique needs. This product is ideal for electric machines, lighting applications, and practical inverters.
We accept T/T payment terms for your convenience. Contact us to learn more about how our Lingxun High Voltage MOSFET product can benefit your business.
Our High Voltage MOSFET products come with comprehensive technical support and services to ensure your product operates at its full potential. Our team of experts is available to assist with any technical questions, product selection, and design-in assistance. We also offer training and resources to help you stay up-to-date with the latest industry standards and best practices.
Our services include:
Our goal is to provide you with exceptional service and support throughout the entire product lifecycle. Contact us today to learn more about our High Voltage MOSFET technical support and services.
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
