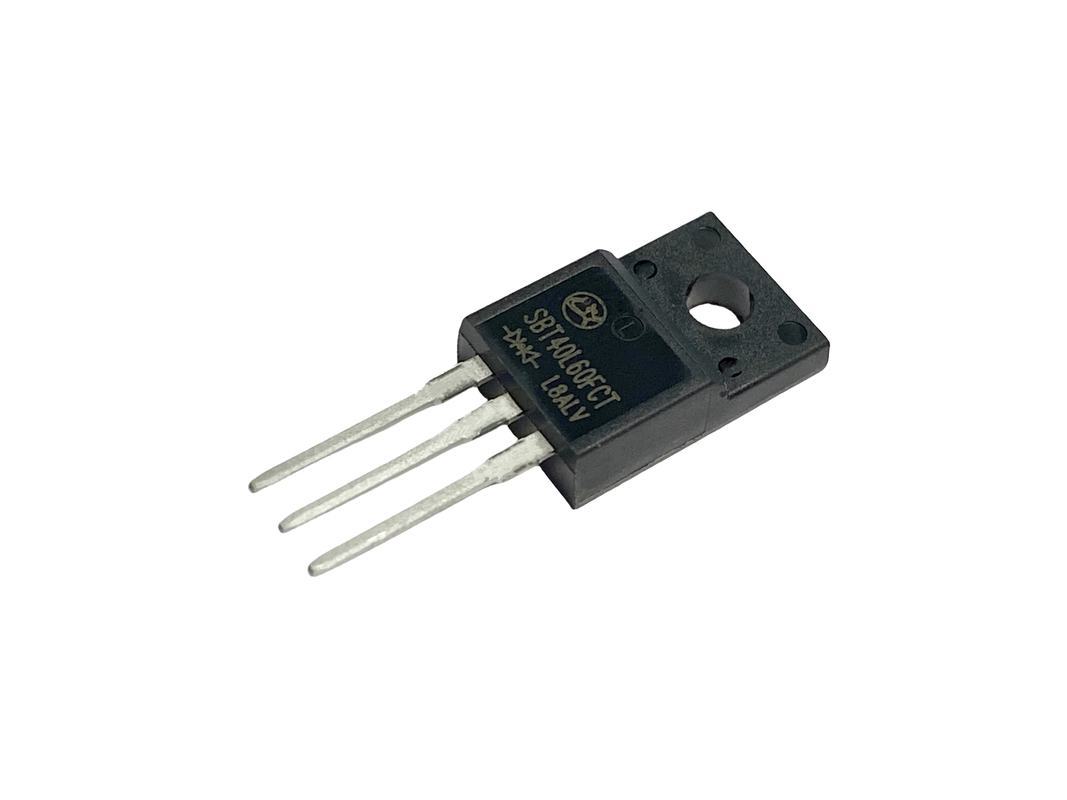

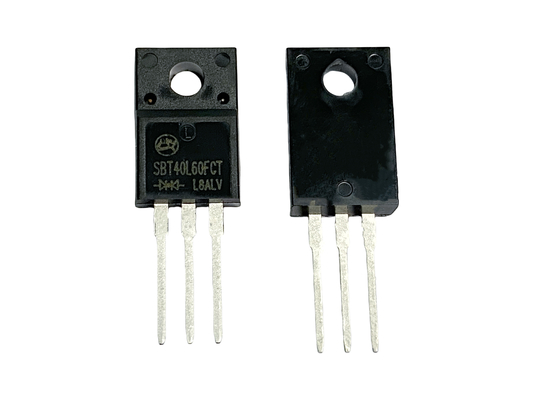

40A60V SBT40L60FCT Power Supply Units Low VF Schottky Diodes TO-220F
Part
Number |
Package |
Die |
Io
(A) |
VBR
@IR |
VF(25℃)
@IF |
IR(25℃)
@VBR |
VF(125℃)
@IF |
IR
(125℃ |
IFSM
(A) |
Tj
(℃) |
Min
(V) |
IF
(A) |
Typ
(V) |
Max
(V) |
Typ
(uA) |
Max
(uA) |
IF
(A) |
Typ
(V) |
Typ
(mA) |
| SBT40L60FCT |
TO-220F |
2 |
40 |
60 |
15
20 |
0.48
0.57 |
0.54
0.59 |
45 |
170 |
5 |
0.28 |
10 |
250 |
150 |
Product Description:
One of the key benefits of the SBT is its low forward voltage drop, which helps to minimize energy losses and improve overall system efficiency. This makes it an excellent choice for inverter applications, where efficiency is critical. Additionally, the SBT is designed to operate over a wide temperature range, from -55°C to +150°C, making it suitable for use in high-reliability applications.
The SBT is available in two packages: TO-220AB and TO-220F, making it easy to integrate into a variety of system designs. Whether you're building a new power supply unit, motor drive, or RF amplifier, the SBT Low VF Schottky product is a reliable and high-performance choice that can help you achieve your design goals.
Features:
- Product Name: Low VF Schottky
- Rohs Compliant: Rohs
- Operating Temperature Range: -55°C To +150°C
- Application: Power Supply Units,Motor Drives,RF Amplifiers,Wireless Communications
- Model Number: SBT40L60FCT
- Characteristics: Fast Switching Speed,High Efficiency,Low Reverse Recovery Time
This Low VF Schottky product is ideal for use in a variety of industrial control systems, including power supply units and motor drives. Its high efficiency and fast switching speed make it perfect for use in Data Storage Systems and RF Amplifiers. With a low reverse recovery time, this product is also ideal for use in wireless communications applications.
Technical Parameters:
| Technical Parameters |
Value |
| Rohs Compliant |
Rohs |
| Package |
TO-220F |
| Characteristics |
Fast Switching Speed,High Efficiency,Low Reverse Recovery Time |
| Application |
Power Supply Units,Motor Drives,RF Amplifiers,Wireless Communications |
| Model Number |
SBT40L60FCT |
| Operating Temperature Range |
-55°C To +150°C |
Applications:
The Low VF Schottky product is designed with fast switching speed and low reverse recovery time, allowing for efficient energy conversion and reduced power loss. It is ideal for use in power supply units, motor drives, RF amplifiers, and wireless communications.
With a supply ability of 600KK/year, Lingxun can meet your needs for high-reliability applications that require fast and efficient switching. The product is available in TO-220F packages, and the minimum order quantity and pricing are dependent on the specific part number and packaging requirements.
Delivery time and payment terms will be confirmed based on your order specifics. And the product is Rohs compliant.
Choose Lingxun's Low VF Schottky product for your high efficiency, high-reliability applications and experience the benefits of fast switching speed and reduced power loss.
Model Number: SBT40L60FCT
Support and Services:
The Low VF Schottky product is a high-performance diode that features low forward voltage and fast switching speeds. It is designed for use in power management applications, such as DC-DC converters, power supplies, and battery chargers. Our technical support and services for this product include:
- Design-in assistance to help you select the best product for your application
- Application notes and reference designs to help you optimize performance
- Customization services to meet your specific requirements
- Failure analysis and reliability testing to ensure product quality and performance
- Technical training and seminars to help you stay up-to-date with the latest industry trends and best practices
Our goal is to provide you with the best possible support and service to ensure the success of your project. Contact us to learn more about our Low VF Schottky product and technical support and services.
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
