Product Details:
|
| Package: | TO-263 | IO: | 2*20A |
|---|---|---|---|
| VRRM: | 100V | IFSM: | 380A |
| VF: | 0.63V | TJmax: | 150℃ |
| Highlight: | Lighting Ulta Low VF Schottky Diodes,40A100V Ulta Low VF Schottky Diodes |
||

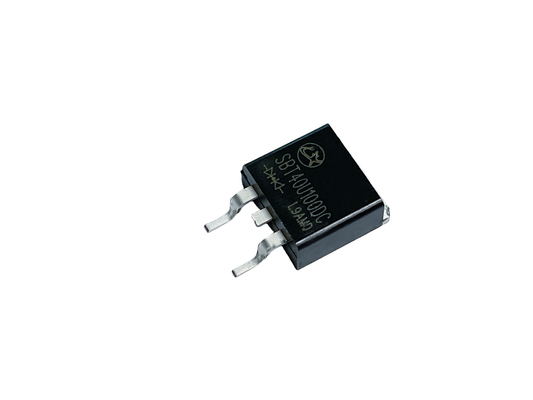

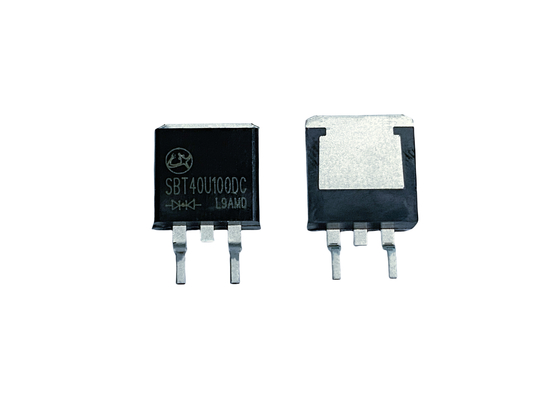

40A100V Ulta Low VF Schottky Diodes SBT40U100DC For Lighting And DC-DC Conerters
| Part Number |
Package | Die | Io (A) |
VBR @IR |
VF(25℃) @IF |
IR(25℃) @VBR |
VF(125℃) @IF |
IR (125℃ |
IFSM (A) |
Tj (℃) |
||||
| Min (V) |
IF (A) |
Typ (V) |
Max (V) |
Typ (uA) |
Max (uA) |
IF (A) |
Typ (V) |
Typ (mA) |
||||||
| SBT40U100DC | TO-263 | 2 | 40 | 100 | 5 20 |
0.45 0.65 |
0.57 0.70 |
8.5 | 90 | 5 | 0.36 | - | 320 | 150 |
The SBT model number is designed for use in high-speed applications that require fast switching speeds. It is well-suited for use in communications equipment and RF amplifiers.
The Low VF Schottky diodes are also RoHS compliant, ensuring that they meet the latest environmental standards. They have a wide operating temperature range of -55°C to +150°C, making them suitable for use in a variety of harsh environments.
Overall, the Low VF Schottky series of diodes is an excellent choice for applications that require high efficiency and fast switching speed. With their low reverse recovery time and RoHS compliance, they are a reliable and environmentally friendly option for a variety of industries.
| Application | Power Supply Units, Motor Drives, RF Amplifiers, Wireless Communications |
| Model Number | SBT40U100DC |
| Rohs Compliant | Rohs |
| Operating Temperature Range | -55°C To +150°C |
| Characteristics | Fast Switching Speed, High Efficiency, Low Reverse Recovery Time |
| Package | TO-263 |
The Lingxun Low VF Schottky product has a supply ability of 600KK/year and is available in four different package types: TO-220, TO-252, TO-247S, and TO-247. The model number for this product is SBT.
This product is ideal for a variety of applications, including power supply units, motor drives, RF amplifiers, and wireless communications. Its fast switching speed and low reverse recovery time make it particularly suitable for use in motor drives and high-reliability applications. The operating temperature range for this product is -55°C to +150°C.
If you are looking for a high-quality, reliable electronic component for your power driver or other electronic applications, the Lingxun Low VF Schottky product is an excellent choice. Contact us today to confirm the minimum order quantity, price, and packaging details and to place your order.
Our Low VF Schottky diodes are ideal for power driver, Motor Drives, and Power Supply Units applications. Contact us to learn more about our customizable options and how we can meet your specific needs.
The Low VF Schottky product line offers technical support and services to ensure optimal performance and functionality for your application needs. Our team of experts can provide assistance with product selection, design recommendations, and troubleshooting. Additionally, we offer comprehensive documentation and training materials to help you get the most out of our products. Contact us for any technical support or service inquiries related to the Low VF Schottky product line.
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
