Product Details:
|
| Package: | TO-220AB | IO: | 2*10A |
|---|---|---|---|
| VRRM: | 100V | IFSM: | 280A |
| VF: | 0.62V | TJmax: | 150℃ |
| Highlight: | Fast Switching Speed Low VF Schottky,TO-220AB Low VF Schottky,20A100V Low VF Schottky |
||

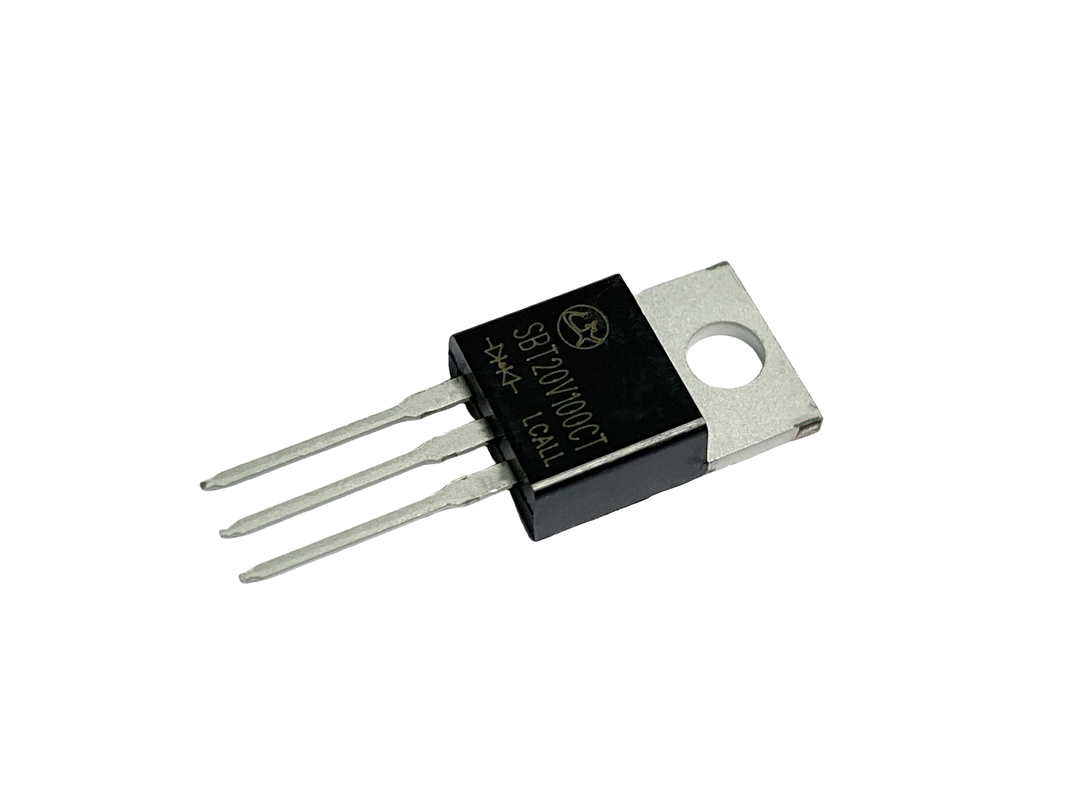

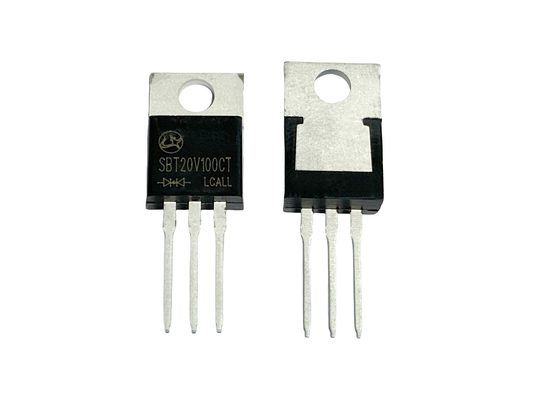

20A100V SBT20V100CT Fast Switching Speed Low VF Schottky TO-220AB
| Part Number |
Package | Die | Io (A) |
VBR @IR |
VF(25℃) @IF |
IR(25℃) @VBR |
VF(125℃) @IF |
IR (125℃ |
IFSM (A) |
Tj (℃) |
||||
| Min (V) |
IF (A) |
Typ (V) |
Max (V) |
Typ (uA) |
Max (uA) |
IF (A) |
Typ (V) |
Typ (mA) |
||||||
| SBT20V100CT | TO-220AB | 2 | 20 | 100 | 3 10 |
0.49 0.67 |
- 0.70 |
5 | 50 | 3 10 |
0.42 0.61 |
4.5 | 160 | 150 |
One of the key features of this product is its Low Forward Voltage, which makes it an efficient solution for your control equipment needs. With this feature, you can expect a lower voltage drop and reduced power loss, resulting in increased efficiency and reliability.
The Low VF Schottky product is also designed to withstand a wide range of operating temperatures, from -55°C to +150°C. This makes it a durable and dependable option for use in harsh environments and extreme conditions.
When it comes to packaging, the Low VF Schottky product is available in several options, including TO-220AB. This allows you to choose the package that best suits your needs and requirements.
The model number for this product is SBT, and it is perfect for use in a variety of applications, including inverter applications. With its low forward voltage, it is an ideal solution for controlling equipment and reducing power loss.
|
Technical Parameter |
Value |
|---|---|
| Characteristics | Fast Switching Speed, High Efficiency, Low Reverse Recovery Time |
| Application | Power Supply Units, Motor Drives, RF Amplifiers, Wireless Communications |
| Rohs Compliant | Yes |
| Model Number | SBT20V100CT |
| Operating Temperature Range | -55°C to +150°C |
| Package | TO-220AB |
This Low VF Schottky product with its fast switching speed, high efficiency, and low reverse recovery time is ideal for use in industrial control systems, switching power supplies, and wireless communications applications. It is also Rohs compliant and available in a range of package options including TO-220AB.
The Lingxun Low VF Schottky product is an ideal component for a wide range of applications. Its fast switching speed and low reverse recovery time make it perfect for use in power supply units, motor drives, RF amplifiers, and wireless communications equipment. This product is designed to operate in a wide range of temperatures, from -55°C to +150°C, and is made in China with ISO9001, ISO14001, ROHS, and REACH certifications.
With a supply ability of 600KK/year, the Lingxun Low VF Schottky product is available in various packages, including TO-220, TO-252, TO-247S, and TO-247. The minimum order quantity and price will vary based on the specific part number, and the packaging details and delivery time can also be confirmed at the time of purchase.
For those in need of a component for wireless communications, the Lingxun Low VF Schottky product is an excellent choice. Its high efficiency and fast switching speed make it perfect for use in RF amplifiers and other wireless communications equipment. This product is also ROHS compliant, ensuring it meets all the necessary environmental standards.
Overall, the Lingxun Low VF Schottky product is a versatile component that can be used in a variety of scenarios. Its high efficiency and fast switching speed make it an excellent choice for those looking to increase the performance of their power supply units, motor drives, RF amplifiers, and wireless communications equipment. With its certifications and reliable supply chain, this product is a great investment for anyone looking to improve their electronic systems.
Brand Name: Lingxun
Place of Origin: China
Certification: ISO9001,ISO14001,ROHS,REACH
Minimum Order Quantity: Confirm quantity based on part number
Price: Confirm price based on part number
Packaging Details: Confirm package based on part number
Delivery Time: comfirm
Payment Terms: T/T payment
Supply Ability: 600KK/year
Operating Temperature Range: -55°C To +150°C
Package: TO-220AB
Rohs Compliant: Rohs
Application: Power Supply Units,Motor Drives,RF Amplifiers,Wireless Communications
Characteristics: Fast Switching Speed,High Efficiency,Low Reverse Recovery Time
Our Low VF Schottky product is customizable to meet your adapter needs. It is suitable for a variety of applications such as Power Supply Units, Motor Drives, and RF Amplifiers. Contact us to confirm the minimum order quantity, price, packaging details, and delivery time. We accept T/T payment and have a supply ability of 600KK/year. The product operates within a temperature range of -55°C to +150°C and is available in TO-220, TO-252, TO-247S, and TO-247 packages. Additionally, our product is Rohs compliant and certified with ISO9001, ISO14001, ROHS, and REACH certifications.
The Low VF Schottky product offers technical support and services to ensure the optimal performance, reliability, and longevity of the product. Our technical support team is available to answer any questions and troubleshoot any issues that may arise. We also offer design resources, including application notes and reference designs, to assist in the integration of the Low VF Schottky product into your project. Our services include product customization and testing to meet specific requirements, as well as training and education on the use and maintenance of the product. Contact us for more information on our technical support and services.
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
