Part
Number |
Package |
Die |
Io
(A) |
VBR
@IR |
VF(25℃)
@IF |
IR(25℃)
@VBR |
VF(125℃)
@IF |
IR
(125℃ |
IFSM
(A) |
Tj
(℃) |
Min
(V) |
IF
(A) |
Typ
(V) |
Max
(V) |
Typ
(uA) |
Max
(uA) |
IF
(A) |
Typ
(V) |
Typ
(mA) |

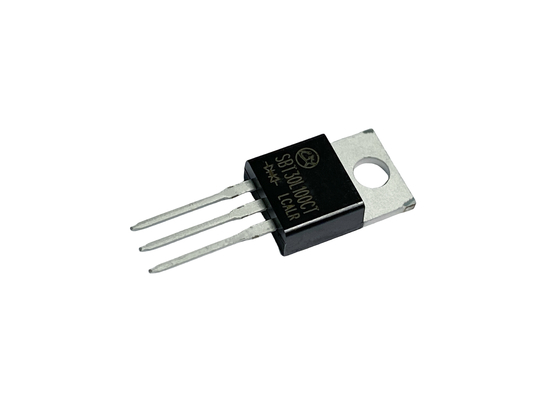

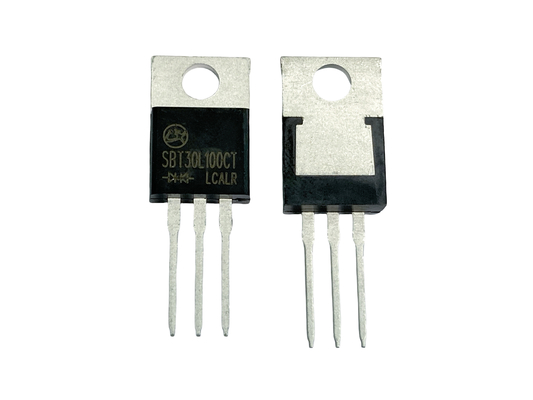

| SBT30L100CT |
TO-220AB |
2 |
30 |
100 |
3
15 |
0.465
0.67 |
0.49
0.73 |
12 |
20 |
5 |
0.44 |
- |
220 |
150 |
Features:
- Product Name: Low VF Schottky
- Package:
- Operating Temperature Range: -55°C To +150°C
- Application:
- Power Supply Units
- Motor Drives
- RF Amplifiers
- Wireless Communications
- Model Number: SBT30L100CT
- Characteristics:
- Fast Switching Speed
- High Efficiency
- Low Reverse Recovery Time
This Low VF Schottky product has fast switching capability, making it ideal for use as a power driver in various applications. Additionally, it has a low reverse recovery time, allowing for efficient energy use.
Technical Parameters:
| Characteristics |
Fast Switching Speed, High Efficiency, Low Reverse Recovery Time |
| Rohs Compliant |
Rohs |
| Application |
Power Supply Units, Motor Drives, RF Amplifiers, Wireless Communications |
| Operating Temperature Range |
-55°C To +150°C |
| Package |
TO-220AB |
| Model Number |
SBT30L100CT |
This Low VF Schottky product is characterized by its fast switching speed, high efficiency, and low reverse recovery time, making it suitable for use in power supply units, motor drives, RF amplifiers, and wireless communications. It is Rohs compliant and can operate within a wide temperature range of -55°C to +150°C. Its robustness and power driver capabilities make it a reliable choice for various applications. The product is available in TO-220, TO-252, TO-247S, and TO-247 packages with a model number of SBT.
Applications:
The Low VF Schottky diodes from Lingxun have a fast switching capability and high efficiency, making them ideal for use in power supply units, motor drives, RF amplifiers, and wireless communications. These diodes have a low reverse recovery time, which means they can switch quickly and efficiently, making them ideal for high-speed applications.
The SBT diodes from Lingxun are available in several package options, including TO-220AB. The minimum order quantity and price will vary based on the specific part number and package option chosen. Packaging details will also vary based on the chosen part number.
Lingxun has a supply ability of 600KK/year for their Low VF Schottky diodes, ensuring that their customers will have access to these high-quality diodes whenever they need them. Delivery time and payment terms will vary depending on the specific order.
These diodes are also Rohs compliant, ensuring that they meet the standards for hazardous materials. If you need reliable, high-performance diodes for your electronics project, Lingxun's Low VF Schottky diodes are the perfect choice.
Customization:
Product Customization Services:
- Brand Name: Lingxun
- Place of Origin: China
- Certification: ISO9001, ISO14001, ROHS, REACH
- Minimum Order Quantity: Confirm quantity based on part number
- Price: Confirm price based on part number
- Packaging Details: Confirm package based on part number
- Delivery Time: comfirm
- Payment Terms: T/T payment
- Supply Ability: 600KK/year
- Model Number: SBT30L100CT
- Rohs Compliant: Rohs
- Package: TO-220AB
- Characteristics: Fast Switching Speed, High Efficiency, Low Reverse Recovery Time
- Application: Power Supply Units, Motor Drives, RF Amplifiers, Wireless Communications
This Low VF Schottky product is characterized by its high efficiency, making it ideal for use in applications such as data storage systems and RF amplifiers.
Support and Services:
The Low VF Schottky product is a type of semiconductor diode that offers low voltage drop and fast switching performance. Our technical support and services for this product include:
1. Product selection guidance: Our team can help you select the right Low VF Schottky diode for your specific application needs.
2. Design-in support: We offer design-in support to help you integrate the Low VF Schottky diode into your system design.
3. Technical documentation: We provide comprehensive technical documentation, including datasheets, application notes and reference designs, to help you understand the features and capabilities of the Low VF Schottky diode.
4. Testing and validation support: Our team can help you with testing and validation to ensure that the Low VF Schottky diode meets your requirements and specifications.
5. Customization services: We offer customization services to modify the Low VF Schottky diode to meet your specific requirements.
Contact us for more information about our Low VF Schottky product technical support and services.
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
