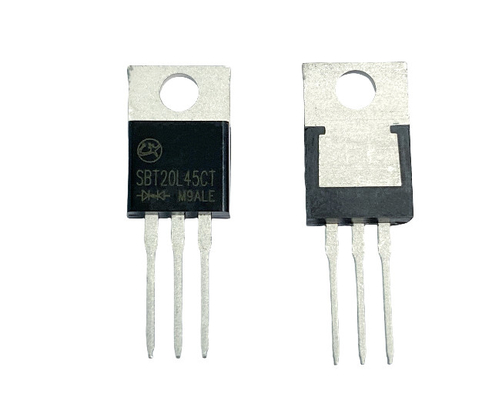

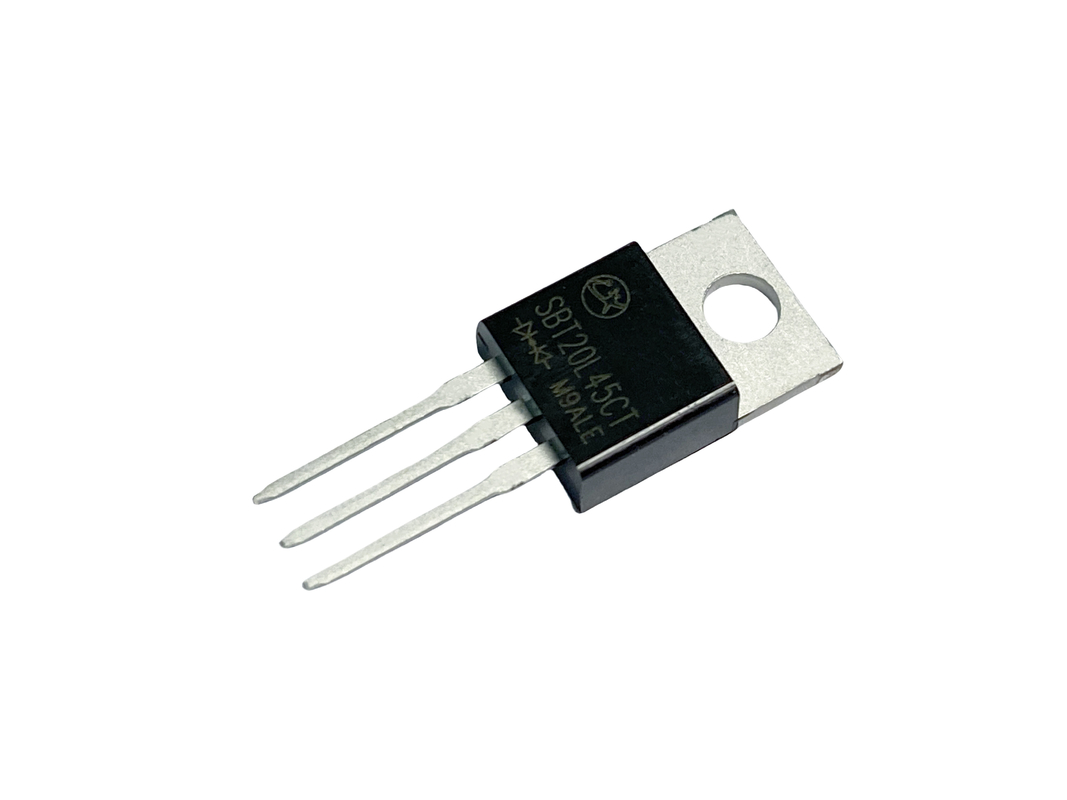

20A45V SBT20L45CT Low VF Schottky Diodes For Miniature Switched Mode Power Supplies
Part
Number |
Package |
Die |
Io
(A) |
VBR
@IR |
VF(25℃)
@IF |
IR(25℃)
@VBR |
VF(125℃)
@IF |
IR
(125℃ |
IFSM
(A) |
Tj
(℃) |
Min
(V) |
IF
(A) |
Typ
(V) |
Max
(V) |
Typ
(uA) |
Max
(uA) |
IF
(A) |
Typ
(V) |
Typ
(mA) |
| SBT20L45CT |
TO-220AB |
2 |
20 |
45 |
10 |
0.46 |
0.52 |
40 |
120 |
3
10 |
- |
- |
180 |
150 |
Product Description:
Designed with a low forward voltage drop, this product has a reduced power loss and improved efficiency, making it a cost-effective solution for your needs. The SBT20L45CT Low VF Schottky is available in TO-220AB packages, providing flexibility when designing your circuit.
In addition to its outstanding performance, the SBT Low VF Schottky is also RoHS compliant and can operate in a wide range of temperatures, from -55°C to +150°C. This ensures that your circuit will function optimally, even in extreme environments.
So, if you're looking for a high-performance, cost-effective, and reliable solution for your high-reliability applications, look no further than the SBT Low VF Schottky product.
Features:
- Product Name: Low VF Schottky
- Model Number: SBT20L45CT
- Characteristics:
- Fast Switching Speed
- High Efficiency
- Low Reverse Recovery Time
- Rohs Compliant: Rohs
- Application:
- Power Supply Units
- Motor Drives
- RF Amplifiers
- Wireless Communications
- Package:
- Features:
- Low power loss
- High frequency changer
- Inverter
Technical Parameters:
| Technical Parameter |
Description |
| Rohs Compliant |
Rohs |
| Operating Temperature Range |
-55°C To +150°C |
| Characteristics |
Fast Switching Speed, High Efficiency, Low Reverse Recovery Time |
| Model Number |
SBT20L45CT |
| Package |
TO-220AB |
| Application |
Power Supply Units, Motor Drives, RF Amplifiers, Wireless Communications, high-reliability applications, Control Equipment, Power Tool |
Applications:
The Lingxun Low VF Schottky product is available in several packages, including TO-220AB. This product is suitable for use in Motor Drives, where it can be used in the inverter circuit to convert DC power to AC power. The low VF and fast switching speed of this product make it ideal for applications where power loss must be minimized.
In addition to Motor Drives, the Lingxun Low VF Schottky product is also suitable for use in Power Supply Units, where it can be used to rectify AC power into DC power. The high efficiency of this product helps to reduce heat dissipation and increase the overall efficiency of the power supply. The low reverse recovery time of this product also makes it ideal for use in wireless communications applications, where fast switching is required.
Rohs compliant, the Lingxun Low VF Schottky product is manufactured to the highest quality standards and has a supply ability of 600KK/year. Payment terms are T/T payment. Please confirm the minimum order quantity and price for your specific part number. The Lingxun Low VF Schottky product is an excellent choice for any circuit that requires fast switching speed, high efficiency, and low power loss.
Support and Services:
The Low VF Schottky product provides the following technical support and services:
- Application support and guidance
- Product selection and recommendation
- Electrical and thermal characterization data
- Reliability data and analysis
- Failure analysis and corrective actions
- Technical training and education
