Product Details:
|
| IO: | 2*20A | VRRM: | 45V |
|---|---|---|---|
| IFSM: | 250A | VF: | 0.43V |
| Package: | TO-247 | TJmax: | 150℃ |
| Highlight: | High Current Capability Low VF Schottky,40A45V Low VF Schottky,TO-247 Low VF Schottky |
||

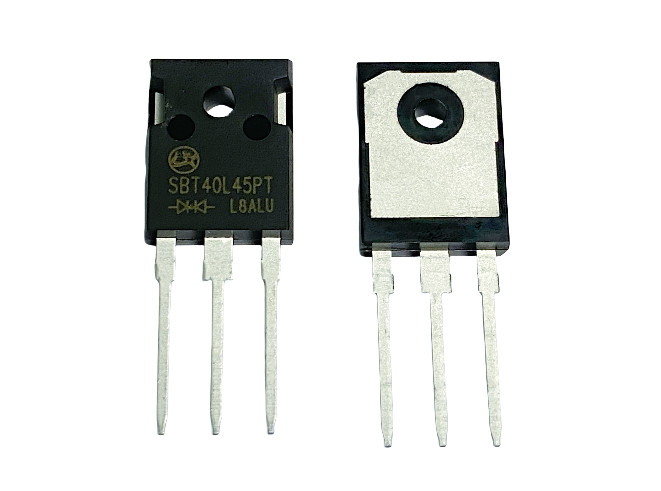

40A45V Low VF Schottky High Current Capability SBT40L45PT TO-247
| Part Number |
Package | Die | Io (A) |
VBR @IR |
VF(25℃) @IF |
IR(25℃) @VBR |
VF(125℃) @IF |
IR (125℃ |
IFSM (A) |
Tj (℃) |
||||
| Min (V) |
IF (A) |
Typ (V) |
Max (V) |
Typ (uA) |
Max (uA) |
IF (A) |
Typ (V) |
Typ (mA) |
||||||
| SBT40L45PT | TO-247 | 2 | 40 | 45 | 10 20 |
0.41 0.47 |
0.44 0.53 |
55 | 170 | 10 20 |
0.35 0.46 |
12 | 250 | 150 |
One of the key features of this product is its low forward voltage, which helps to minimize power loss and maximize efficiency. Additionally, the SBT Low VF Schottky boasts a fast switching speed, which makes it ideal for use in applications that require fast and precise switching.
Another important attribute of the SBT Low VF Schottky is its low reverse recovery time. This means that it can quickly switch from the conducting state to the non-conducting state, which helps to prevent damage to the circuit and ensure smooth operation. This feature is particularly important in high-speed applications where timing is critical.
The SBT Low VF Schottky is also designed to operate within a wide temperature range, from -55°C to +150°C. This makes it suitable for use in a variety of environments and applications, such as automotive and industrial applications.
Finally, it is important to note that the SBT Low VF Schottky is RoHS compliant. This means that it meets the strict requirements for hazardous substance content set forth in the RoHS directive.
| Technical Parameter | Description |
|---|---|
| Operating Temperature Range | -55°C To +150°C |
| Rohs Compliant | Rohs |
| Application | Power Supply Units,Motor Drives,RF Amplifiers,Wireless Communications, Low power loss, industrial control system, Control Equipment |
| Model Number | SBT40L45PT |
| Characteristics | Fast Switching Speed,High Efficiency,Low Reverse Recovery Time |
| Package | TO-263 |
Our Low VF Schottky product is suitable for use in a range of communications equipment. Its fast switching speed and high current capability make it perfect for use in high-frequency switching power supplies, DC-DC converters, and other electronic circuits. It is also perfect for use in rectification circuits, freewheeling diodes, and reverse polarity protection applications.
The minimum order quantity and price for our Low VF Schottky product vary based on part number and packaging details. Please contact us for more information on confirm quantity, package, and delivery time. Our payment terms are T/T payment.
Customize your Low VF Schottky product with Lingxun, a trusted brand from China. Our products come with ISO9001, ISO14001, ROHS, and REACH certifications, ensuring their quality and safety. The minimum order quantity will be confirmed based on the part number. Prices and packaging details will also be confirmed based on the part number. Our supply ability is 600KK/year, and the delivery time will be confirmed. We accept T/T payment terms. Our SBT40L45PT model number is RoHS compliant and comes in TO-220, TO-252, TO-247S, and TO-247 packaging. The operating temperature range is from -55°C to +150°C, making it suitable for automotive electronics, power supply units, motor drives, RF amplifiers, and wireless communications.
The Low VF Schottky product provides high-performance solutions for power management and power conversion applications. Our technical support team is available to provide assistance with product selection, design-in support, and troubleshooting. In addition, we offer a range of services including custom packaging, testing, and screening to ensure the highest quality and reliability of our products. Contact us for more information on how we can assist you with your Low VF Schottky needs.
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
