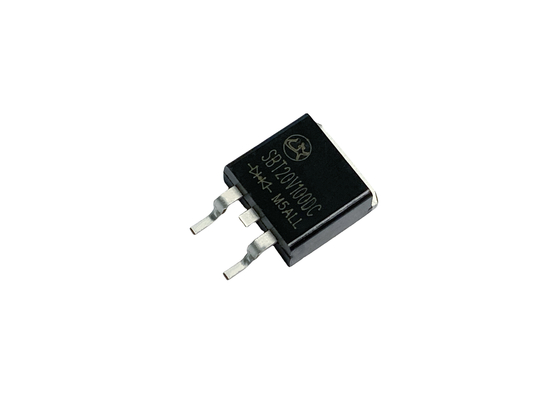

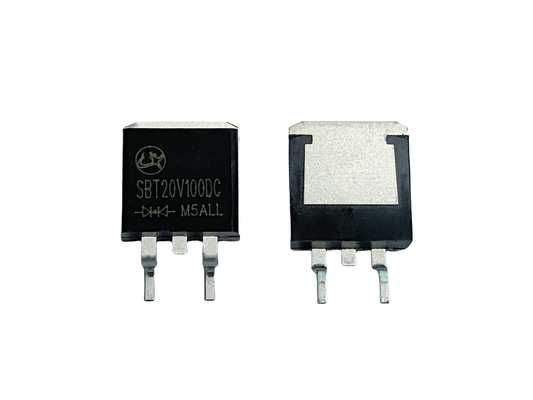

20A100V Surface Amount Low VF Schottky TO-263 SBT20V100DC For Power Adaptor
Part
Number |
Package |
Die |
Io
(A) |
VBR
@IR |
VF(25℃)
@IF |
IR(25℃)
@VBR |
VF(125℃)
@IF |
IR
(125℃ |
IFSM
(A) |
Tj
(℃) |
Min
(V) |
IF
(A) |
Typ
(V) |
Max
(V) |
Typ
(uA) |
Max
(uA) |
IF
(A) |
Typ
(V) |
Typ
(mA) |
| SBT20V100DC |
TO-263 |
2 |
20 |
100 |
3
10 |
0.49
0.67 |
-
0.70 |
5 |
50 |
3
10 |
0.42
0.61 |
4.5 |
160 |
150 |
Product Description:
The Low VF Schottky product is ideal for a range of applications, including power supply units, motor drives, RF amplifiers, and wireless communications. Its fast switching speed makes it well suited for frequency changers and power drivers. Additionally, its low reverse recovery time ensures that power loss is kept to a minimum, even in high-frequency applications.
The operating temperature range of the Low VF Schottky product is -55°C to +150°C, making it suitable for use in a wide range of environments. Whether you need a reliable component for industrial or consumer electronics applications, the Low VF Schottky product is an excellent choice.
Features:
- Product Name: Low VF Schottky
- Package: TO-263
- Model Number: SBT20V100DC
- Characteristics: Fast Switching Speed, High Efficiency, Low Reverse Recovery Time
- Operating Temperature Range: -55°C To +150°C
- Rohs Compliant: Rohs
- Applications: Communications Equipment
- Features: Fast Switching Speed, High surge capability
Technical Parameters:
| Technical Parameter |
Value |
| Application |
Power Supply Units,Motor Drives,RF Amplifiers,Wireless Communications Equipment, Control Equipment |
| Package |
TO-263 |
| Rohs Compliant |
Yes |
| Operating Temperature Range |
-55°C To +150°C |
| Characteristics |
Fast Switching Speed,High Efficiency,Low Reverse Recovery Time, Low power loss |
| Model Number |
SBT20V100DC |
Applications:
Product Name: Lingxun Low VF Schottky
Brand Name: Lingxun
Place of Origin: China
Certification: ISO9001, ISO14001, ROHS, REACH
Minimum Order Quantity: Confirm quantity based on part number
Price: Confirm price based on part number
Packaging Details: Confirm package based on part number
Delivery Time: Confirm
Payment Terms: T/T payment
Supply Ability: 600KK/year
Rohs Compliant: Rohs
Model Number: SBT20V100DC
Package: TO-263
Application: Power Supply Units, Motor Drives, RF Amplifiers, Wireless Communications
Characteristics: Fast Switching Speed, High Efficiency, Low Reverse Recovery Time
The Lingxun Low VF Schottky is a high-quality product that is perfect for industrial control systems, power supply units, power drivers, motor drives, RF amplifiers, and wireless communications. This product is designed and manufactured in China with ISO9001, ISO14001, ROHS, and REACH certifications, ensuring that it meets the highest quality standards.
The Lingxun Low VF Schottky has a fast switching speed, high efficiency, and low reverse recovery time, making it an ideal choice for applications that require high-performance and reliability. It is available in TO-220, TO-252, TO-247S, and TO-247 packages, making it easy to integrate into any system.
Whether you are building a power supply unit, motor drive, RF amplifier, or wireless communication device, the Lingxun Low VF Schottky is the perfect choice. With its superior performance and quality, it is sure to meet your needs and exceed your expectations.
Customization:
Product Customization Services for Low VF Schottky Product
Brand Name: Lingxun
Place of Origin: China
Certification: ISO9001, ISO14001, ROHS, REACH
Minimum Order Quantity: Confirm quantity based on part number
Price: Confirm price based on part number
Packaging Details: Confirm package based on part number
Delivery Time: comfirm
Payment Terms: T/T payment
Supply Ability: 600KK/year
Model Number: SBT20V100DC
Characteristics: Fast Switching Speed, High Efficiency, Low Reverse Recovery Time
Operating Temperature Range: -55°C To +150°C
Application: Power Supply Units, Motor Drives, RF Amplifiers, Wireless Communications, Communications Equipment, RF Amplifiers
Rohs Compliant: Rohs
Support and Services:
Our Low VF Schottky product features a low forward voltage drop (VF) and fast switching performance, making it ideal for use in power management applications. Our technical support team is available to assist with any questions or issues you may encounter when designing with this product. We also offer a range of services, including product testing and customization, to ensure that our Low VF Schottky meets your specific needs. Contact us to learn more about how we can help you optimize your power management solutions with our Low VF Schottky product.
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
