Product Details:
|
| Package: | TO-220AB | IO: | 2*20A |
|---|---|---|---|
| VRRM: | 60V | IFSM: | 250A |
| VF: | 0.49V | TJmax: | 150℃ |
| Highlight: | SBT40L60CT Low VF Schottky,TO-220AB Low VF Schottky,40A60V Low VF Schottky |
||

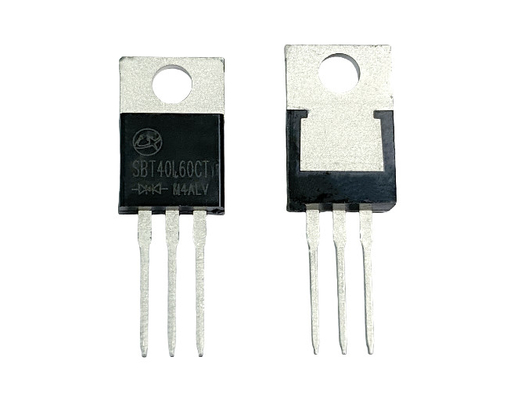

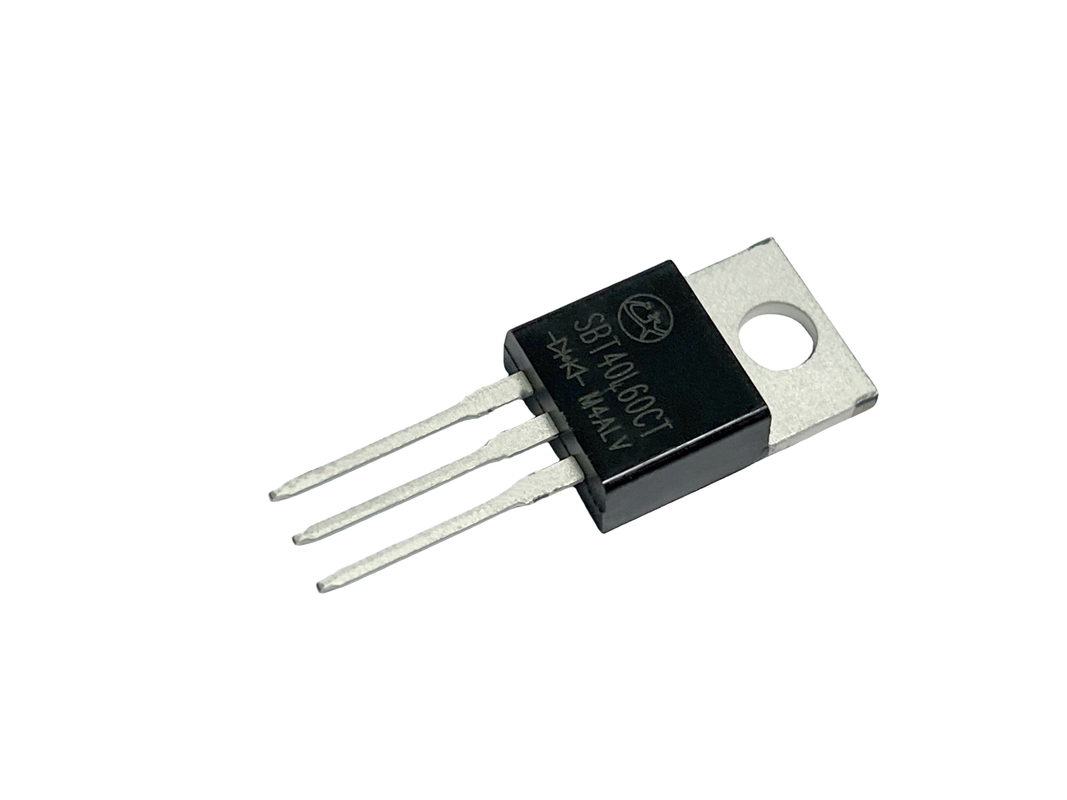

40A60V SBT40L60CT TO-220AB Low VF Schottky Diodes Rectifier For Switching
| Part Number |
Package | Die | Io (A) |
VBR @IR |
VF(25℃) @IF |
IR(25℃) @VBR |
VF(125℃) @IF |
IR (125℃ |
IFSM (A) |
Tj (℃) |
||||
| Min (V) |
IF (A) |
Typ (V) |
Max (V) |
Typ (uA) |
Max (uA) |
IF (A) |
Typ (V) |
Typ (mA) |
||||||
| SBT40L60CT | TO-220AB | 2 | 40 | 60 | 15 20 |
0.48 0.57 |
0.54 0.59 |
45 | 170 | 5 | 0.28 | 10 | 250 | 150 |
The Low VF diodes in this series have a low forward voltage drop, which helps to reduce power losses and increase efficiency in power conversion applications. The fast switching speed and low reverse recovery time of these diodes make them ideal for use in high-frequency applications, such as switching power supplies and DC-DC converters.
The SBT series of Low VF Schottky diodes are RoHS compliant, ensuring that they comply with the latest environmental regulations. These diodes are also available in tape and reel packaging for easy handling and assembly.
Overall, the SBT series of Low VF Schottky diodes offer high efficiency and fast switching speeds, making them an excellent choice for power driver applications that require reliable and efficient performance.
| Product Attribute | Value |
|---|---|
| Characteristics | Fast Switching Speed, High Efficiency, Low Reverse Recovery Time |
| Model Number | SBT40L60CT |
| Operating Temperature Range | -55°C To +150°C |
| Rohs Compliant | RoHS |
| Application | Power Supply Units, Motor Drives, RF Amplifiers, Wireless Communications |
| Package | TO-220AB |
| Robustness | Suitable for automotive electronics |
Lingxun Low VF Schottky products are an excellent choice for a wide range of applications, including power supply units, motor drives, RF amplifiers, and wireless communications. The fast switching speed and high efficiency of these products make them an ideal choice for industrial control systems as well as power tools.
These Schottky diodes are manufactured in China, with ISO9001, ISO14001, ROHS, and REACH certifications, ensuring high quality and environmental friendliness. The minimum order quantity, price, and packaging details vary based on the specific part number. Delivery time and payment terms can be confirmed upon order placement.
The Lingxun Low VF Schottky products have a supply ability of 600KK/year and are available in various package types, including TO-220AB. They are Rohs compliant and have model number SBT40L60CT. The low reverse recovery time of these diodes makes them particularly suitable for applications where fast switching capability is required.
Brand Name: Lingxun
Place of Origin: China
Certification: ISO9001,ISO14001,ROHS,REACH
Minimum Order Quantity: Confirm quantity based on part number
Price: Confirm price based on part number
Packaging Details: Confirm package based on part number
Delivery Time: comfirm
Payment Terms: T/T payment
Supply Ability: 600KK/year
Operating Temperature Range: -55°C To +150°C
Application: Power Supply Units, Motor Drives, RF Amplifiers, Wireless Communications, frequency changer, automotive electronics
Characteristics: Fast Switching Speed, High Efficiency, Low Reverse Recovery Time
Model Number: SBT40L60CT
Package: TO-220, TO-252, TO-247S, TO-247
The Low VF Schottky product offers the following technical support and services:
- Assistance with product selection and application design
- Technical documentation and datasheets
- Design resources and tools, including simulation models and evaluation boards
- Sample requests for qualified customers
- Product training and webinars
- Customer support and troubleshooting
Product Packaging:
The Low VF Schottky product will be packaged securely in a box with adequate padding to prevent any damage during shipping.
Shipping:
We offer free standard shipping for all orders of the Low VF Schottky product within the United States. International shipping rates will vary depending on the destination country and the weight of the package. Shipping times may also vary depending on the location, but we strive to deliver all orders as quickly as possible.
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
