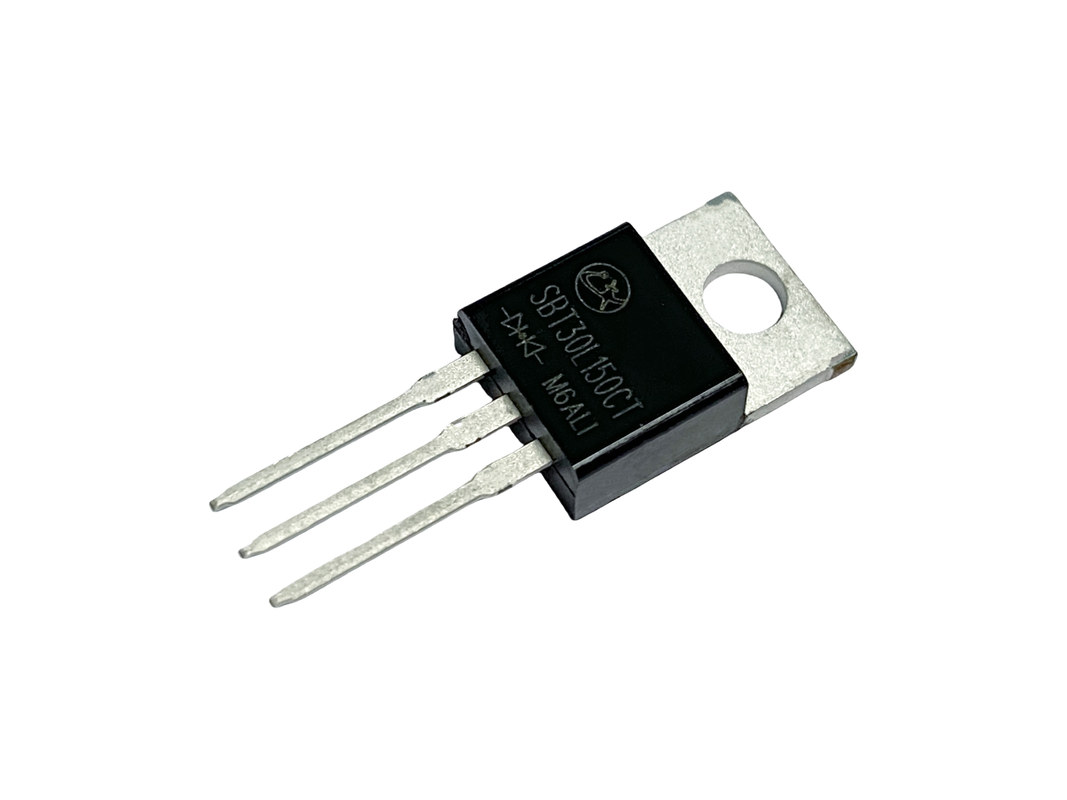

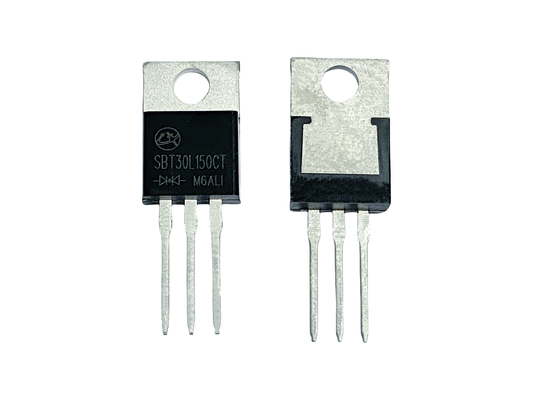

30A150V SBT30L150CT Low VF Schottky For Switching Power Supply
|
Part
Number
|
Package
|
Die
|
Io
(A)
|
VBR
@IR
|
VF(25℃)
@IF
|
IR(25℃)
@VBR
|
VF(125℃)
@IF
|
IR
(125℃
|
IFSM
(A)
|
Tj
(℃)
|
|
Min
(V)
|
IF
(A)
|
Typ
(V)
|
Max
(V)
|
Typ
(uA)
|
Max
(uA)
|
IF
(A)
|
Typ
(V)
|
Typ
(mA)
|
|
SBT30L150CT
|
TO-220AB
|
2
|
30
|
150
|
20
|
0.82
|
0.88
|
0.02
|
0.5
|
7
|
-
|
-
|
450
|
175
|
Product Description:
The Low VF Schottky diode is a crucial component in many electronic devices, including frequency changers, power tools, and RF amplifiers. Its low forward voltage drop and high current density make it an ideal choice for high-frequency applications where efficiency is critical.
Manufactured to meet RoHS compliance standards, the Low VF Schottky diode is an environmentally friendly solution that is free from hazardous materials. It is available in a range of package options, including TO-220AB, providing flexibility and ease of integration into various electronic systems.
When it comes to performance, the Low VF Schottky diode delivers exceptional results. Its low forward voltage drop reduces power losses, which, in turn, helps improve overall system efficiency. This feature makes it an ideal choice for power supply units, where efficiency is critical. Additionally, its high current density ensures that it can handle high loads without any performance degradation.
In summary, the Low VF Schottky diode is a versatile and efficient solution for various electronic applications, including power supply units, motor drives, RF amplifiers, and wireless communications. With its low forward voltage drop and high current density, it is an ideal choice for high-frequency applications, where efficiency is crucial. Its RoHS compliance and availability in various package options make it a flexible and environmentally friendly solution for electronic systems.
Features:
- Product Name: Low VF Schottky
- Package: TO-220AB
- Rohs Compliant: Rohs
- Characteristics: Fast Switching Speed, High Efficiency, Low Reverse Recovery Time
- Application: Power Supply Units, Motor Drives, RF Amplifiers, Wireless Communications
- Operating Temperature Range: -55°C To +150°C
This Low VF Schottky product is ideal for applications requiring fast switching speed, high efficiency, and low reverse recovery time. It is available in multiple packages, including TO-220AB. It is also Rohs compliant, ensuring its environmental friendliness. With its ability to handle motor drives and wireless communication equipment, this product is versatile and suitable for a wide range of applications. Its operating temperature range of -55°C to +150°C makes it a reliable choice for various environments.
Technical Parameters:
| Model Number |
SBT30L150CT |
| Operating Temperature Range |
-55°C To +150°C |
| Characteristics |
Fast Switching Speed, High Efficiency, Low Reverse Recovery Time |
| Package |
TO-220AB |
| Rohs Compliant |
Rohs |
| Application |
Power Supply Units, Motor Drives, RF Amplifiers, Wireless Communications |
Applications:
The Lingxun Low VF Schottky product is designed to offer fast switching speed, high efficiency, and low reverse recovery time, making it ideal for various applications. Some of the typical applications for this product include Power Supply Units, Motor Drives, RF Amplifiers, and Wireless Communications. This product is also suitable for high-reliability applications that require stable and efficient performance.
One of the key features of the Lingxun Low VF Schottky product is its ability to operate in a wide temperature range, from -55°C to +150°C. This makes it an ideal component for applications that require reliable performance in extreme conditions. For instance, this product can be used in frequency changers, which are used in various industrial applications, including Data Storage Systems.
The Lingxun Low VF Schottky product is available in different models, each with its unique specifications. The minimum order quantity and price for each model will vary based on the part number and packaging details. The delivery time will also depend on the quantity ordered and the location of the customer. Payment terms are typically T/T payment.
Support and Services:
The Low VF Schottky product provides a high performance and low power loss solution for power management applications. Our technical support team is available to assist with any questions or issues related to the product, including guidance on product selection, design, and troubleshooting. Additionally, we offer a range of services such as design-in support, simulation models, and custom packaging options to help meet the specific needs of our customers. Contact us to learn more about our technical support and services for the Low VF Schottky product.
Packing and Shipping:
Product Packaging:
The Low VF Schottky product is packed in anti-static tubes with a maximum capacity of 50 units per tube. The tubes are then placed in a sturdy cardboard box for shipping.
Product Shipping:
We offer worldwide shipping for the Low VF Schottky product through our trusted shipping partners. The product is shipped in its anti-static tube packaging, which is then placed in a sturdy cardboard box for added protection during transit.
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
