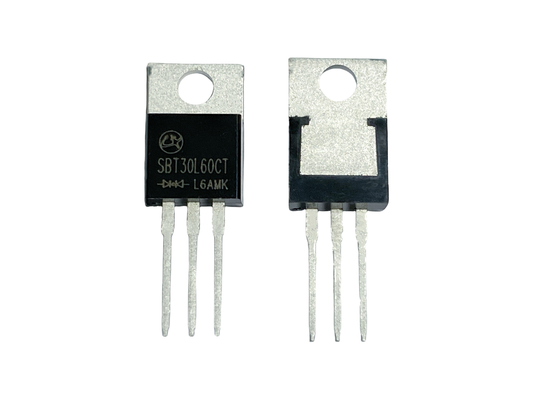

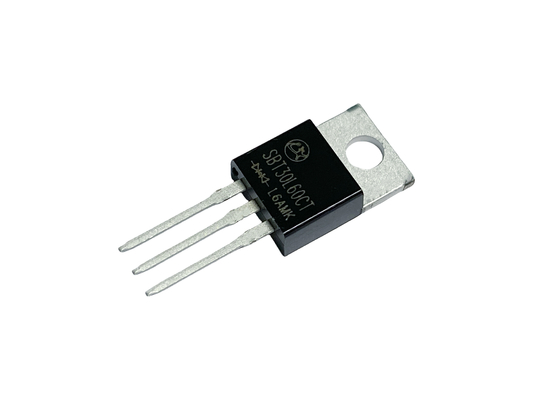

30A60V SBT30L60CT Low Voltage Forward Schottky For Industrial TO-220AB
Part
Number |
Package |
Die |
Io
(A) |
VBR
@IR |
VF(25℃)
@IF |
IR(25℃)
@VBR |
VF(125℃)
@IF |
IR
(125℃ |
IFSM
(A) |
Tj
(℃) |
Min
(V) |
IF
(A) |
Typ
(V) |
Max
(V) |
Typ
(uA) |
Max
(uA) |
IF
(A) |
Typ
(V) |
Typ
(mA) |
| SBT30L60CT |
TO-220AB |
2 |
30 |
60 |
10
15 |
0.46
0.51 |
0.52
0.60 |
40 |
120 |
5 |
0.31 |
- |
220 |
150 |
Product Description:
The SBT Low VF Schottky product has an operating temperature range of -55°C to +150°C, which makes it suitable for use in a wide range of applications. The product is available in several package types, including TO-220, TO-252, TO-247S, and TO-247. This ensures that there is a package option that will suit the specific requirements of different applications.
The SBT Low VF Schottky product has several key features that make it an ideal choice for use in different applications. Some of these features include:
- Fast Switching Speed: The Low VF Schottky product has a fast switching speed, which makes it ideal for use in applications that require high speed switching.
- High Efficiency: The Low VF Schottky product has a low forward voltage drop, which makes it highly efficient and suitable for use in low power loss applications.
- Low Reverse Recovery Time: The Low VF Schottky product has a low reverse recovery time, which means that it can recover quickly from a high surge capability.
The SBT Low VF Schottky product is a reliable and high-quality option for use in different applications. Its RoHS compliance ensures that it meets the international standards for environmental protection. Its low forward voltage drop and low reverse recovery time make it efficient and dependable, while its fast switching speed makes it ideal for use in high-speed switching applications. Its availability in different package types ensures that there is a package option that will suit the specific requirements of different applications.
Features:
- Product Name: Low VF Schottky
- Characteristics:
- Fast Switching Speed
- High Efficiency
- Low Reverse Recovery Time
- Package:
- Model Number: SBT
- Application:
- Power Supply Units
- Motor Drives
- RF Amplifiers
- Wireless Communications
- Operating Temperature Range: -55°C To +150°C
Features of Low VF Schottky that make it suitable for Motor Drives and adapter applications include its low reverse recovery time, fast switching speed, and high efficiency.
Technical Parameters:
| Rohs Compliant |
Rohs |
| Model Number |
SBT30L60CT |
| Package |
TO-220AB |
| Characteristics |
Fast Switching Speed,High Efficiency,Low Reverse Recovery Time |
| Operating Temperature Range |
-55°C To +150°C |
| Application |
Power Supply Units,Motor Drives,RF Amplifiers,Wireless Communications |
Applications:
Our Low VF Schottky product has a wide range of operating temperature, from -55°C to +150°C, making it suitable for various application scenarios. It's perfect for power supply units, motor drives, RF amplifiers, wireless communications, and more.
Our product is RoHS compliant, ensuring that it's free from hazardous substances and safe to use. It has fast switching speed and low reverse recovery time, which makes it ideal for frequency changers and other applications that require high efficiency. Additionally, our product has a very low forward voltage, which results in low power loss and better energy efficiency.
Choose Lingxun's Low VF Schottky product for your next project and experience the benefits of its high quality and performance.
Customization:
- Brand Name: Lingxun
- Place of Origin: China
- Certification: ISO9001, ISO14001, ROHS, REACH
- Minimum Order Quantity: Confirm quantity based on part number
- Price: Confirm price based on part number
- Packaging Details: Confirm package based on part number
- Delivery Time: Confirm
- Payment Terms: T/T payment
- Supply Ability: 600KK/year
- Application: Power Supply Units, Motor Drives, RF Amplifiers, Wireless Communications
- Characteristics: Fast Switching Speed, High Efficiency, Low Reverse Recovery Time, Robustness, power driver, High Efficiency
- Model Number: SBT30L60CT
- Package: TO-220AB
- Rohs Compliant: Rohs
Support and Services:
The Low VF Schottky product provides the following technical support and services:
- Assistance with design and selection of the appropriate Low VF Schottky product
- Technical documentation and datasheets for the product
- Access to online resources, including product FAQs and application notes
- Troubleshooting assistance for any issues related to the product
- Ongoing product support and updates
Packing and Shipping:
Product Packaging:
- The Low VF Schottky product is packaged in anti-static tubes.
- Each tube contains 100 pieces of the product.
- The tubes are then placed in a cardboard box for shipping.
Shipping:
- The product will be shipped via standard shipping.
- Shipping costs will be calculated based on the destination and weight of the package.
- Customers can request expedited shipping for an additional fee.
- All packages will be tracked and customers will receive a tracking number upon shipment.
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
