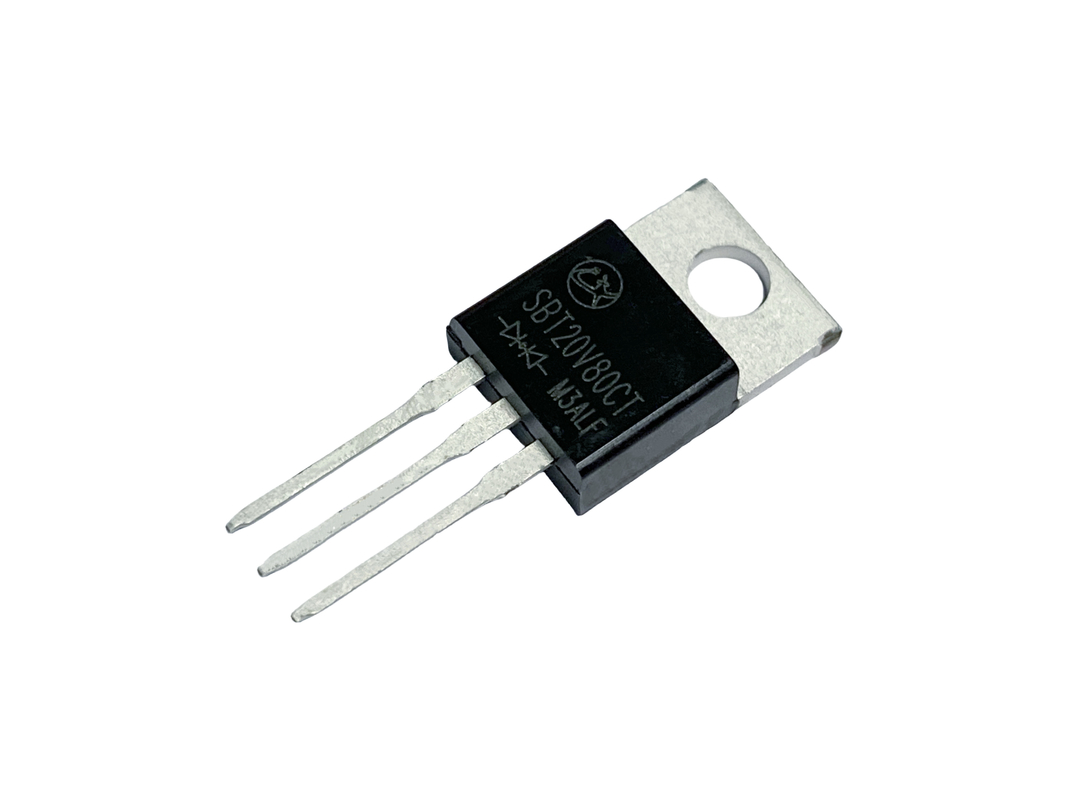

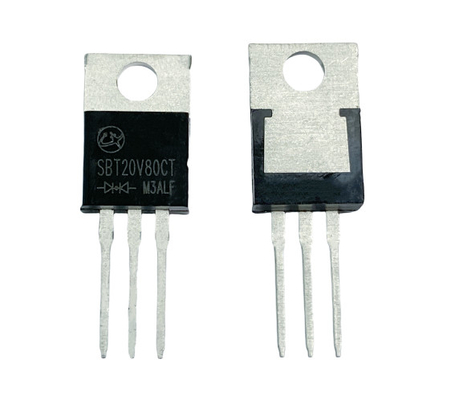

20A80V SBT20V80CT Fast Switching Speed Low VF Schottky Diodes For Rectifier
Part
Number |
Package |
Die |
Io
(A) |
VBR
@IR |
VF(25℃)
@IF |
IR(25℃)
@VBR |
VF(125℃)
@IF |
IR
(125℃ |
IFSM
(A) |
Tj
(℃) |
Min
(V) |
IF
(A) |
Typ
(V) |
Max
(V) |
Typ
(uA) |
Max
(uA) |
IF
(A) |
Typ
(V) |
Typ
(mA) |
| SBT20V80CT |
TO-220AB |
2 |
20 |
80 |
10 |
0.56 |
0.63 |
30 |
60 |
3
10 |
- |
- |
200 |
150 |
Product Description:
Available in TO-220AB and TO-220F packages, this product is RoHS compliant, ensuring that it meets the environmental standards set by the European Union.
The Low VF Schottky product is characterized by its fast switching speed, high efficiency, and low reverse recovery time. These features make it an excellent choice for applications that require precise control equipment and high efficiency.
The low reverse recovery time of the Low VF Schottky product is particularly noteworthy. This attribute ensures that the product can switch quickly and efficiently between conducting and blocking states, reducing power losses and improving overall efficiency.
Overall, the Low VF Schottky product is a reliable and efficient solution for a wide range of applications. Its fast switching speed, high efficiency, and low reverse recovery time make it an ideal choice for use in power supply units, motor drives, RF amplifiers, and wireless communications.
Features:
- Product Name: Low VF Schottky
- Rohs Compliant: Rohs
- Characteristics:
- Fast Switching Speed
- High Efficiency
- Low Reverse Recovery Time (Robustness and Ultra fast recovery diodes)
- Application:
- Power Supply Units
- Motor Drives
- RF Amplifiers
- Wireless Communications
- Model Number: SBT20V80CT
- Operating Temperature Range: -55°C To +150°C
Technical Parameters:
| Technical Parameters |
Description |
| Characteristics |
Fast Switching Speed, High Efficiency, Low Reverse Recovery Time |
| Application |
Power Supply Units, Motor Drives, RF Amplifiers, Wireless Communications |
| Model Number |
SBT20V80CT |
| Operating Temperature Range |
-55°C To +150°C |
| Rohs Compliant |
RoHS |
| Package |
TO-220AB |
| Additional Features |
Robustness for Power Supply Units, High Frequency Capability for RF Amplifiers |
Applications:
Lingxun Low VF Schottky product is a high-quality component that is manufactured in China and meets the ISO9001, ISO14001, ROHS, and REACH certification standards. This product is designed to have a fast switching speed, high efficiency, and low reverse recovery time, making it ideal for various applications.
The Lingxun Low VF Schottky product is available in different models (confirm quantity based on part number) and packaging options (confirm package based on part number) to meet your specific needs. The minimum order quantity, price, and delivery time will depend on the selected part number.
This product has a high current capability, which makes it suitable for use in power supply units, motor drives, and RF amplifiers. It is also compatible with wireless communications equipment, making it an ideal choice for various communication scenarios.
All Lingxun Low VF Schottky products are Rohs compliant, ensuring that they meet the environmental standards for electronic components. With a supply ability of 600KK/year, you can be assured of a reliable and steady supply of this product.
Order your Lingxun Low VF Schottky product today and enjoy its fast switching speed, high efficiency, and low reverse recovery time. Payment can be made through T/T payment, and the packaging details will depend on the selected part number.
Customization:
Brand Name: Lingxun
Place of Origin: China
Certification: ISO9001, ISO14001, ROHS, REACH
Minimum Order Quantity: Confirm quantity based on part number
Price: Confirm price based on part number
Packaging Details: Confirm package based on part number
Delivery Time: comfirm
Payment Terms: T/T payment
Supply Ability: 600KK/year
Rohs Compliant: Rohs
Model Number: SBT20V80CT
Characteristics: Fast Switching Speed, High Efficiency, Low Reverse Recovery Time
Package: TO-220AB
Operating Temperature Range: -55°C to +150°C
Suitable for use in Power Supply Units, frequency changer, and automotive electronics.
Support and Services:
The Low VF Schottky product offers the following technical support and services:
- Application and design-in assistance
- Circuit simulation models
- Reliability and quality assurance
- Product documentation and datasheets
- Technical training and seminars
- Customized product solutions
- Product obsolescence management
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
