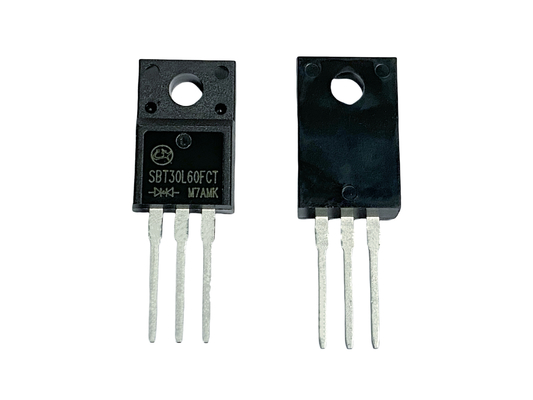

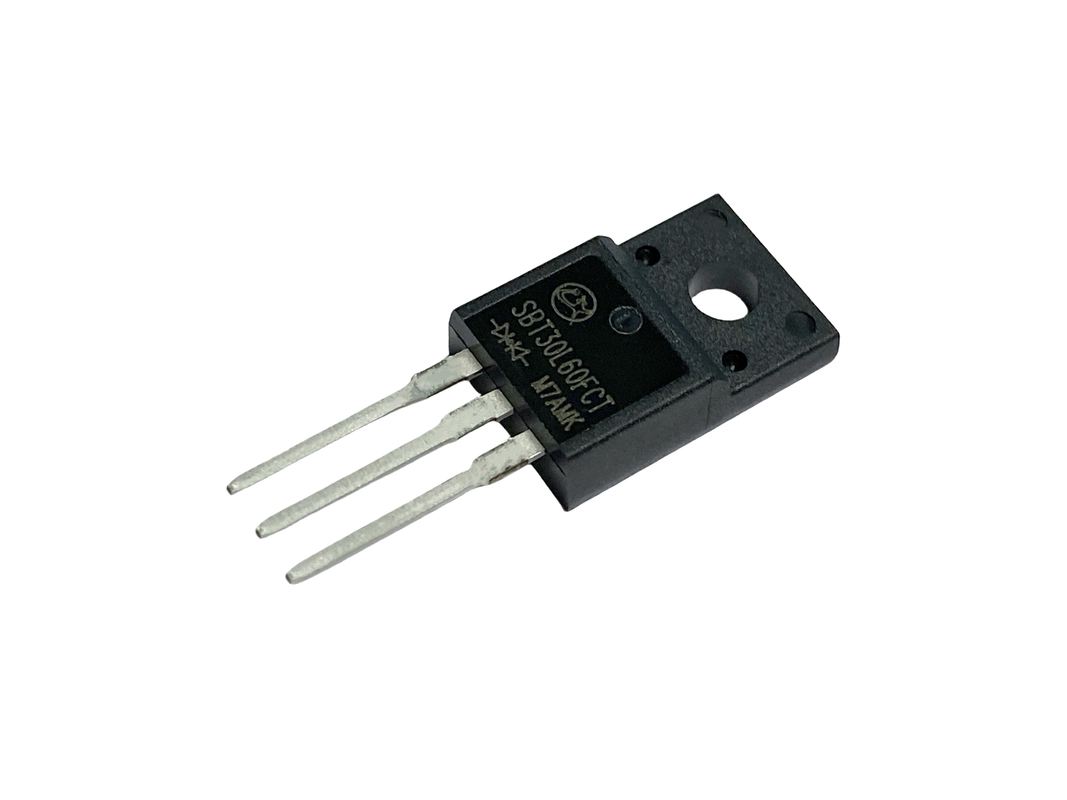

30A60V SBT30L60FCT Rohs Compliant Low VF Schottky Diodes For Power Management
Part
Number |
Package |
Die |
Io
(A) |
VBR
@IR |
VF(25℃)
@IF |
IR(25℃)
@VBR |
VF(125℃)
@IF |
IR
(125℃ |
IFSM
(A) |
Tj
(℃) |
Min
(V) |
IF
(A) |
Typ
(V) |
Max
(V) |
Typ
(uA) |
Max
(uA) |
IF
(A) |
Typ
(V) |
Typ
(mA) |
| SBT30L60FCT |
TO-220F |
2 |
30 |
60 |
10
15 |
0.46
0.51 |
0.52
0.60 |
40 |
120 |
5 |
0.31 |
- |
220 |
150 |
Product Description:
One of the key features of the Low VF Schottky product is its fast switching speed. This allows it to switch on and off quickly, which is essential for high-speed applications. Additionally, this product has a high efficiency, which means that it can convert more of the input power into output power, resulting in lower heat dissipation and improved energy efficiency.
The Low VF Schottky product also boasts a low reverse recovery time. This means that when the device switches from the forward-biased to the reverse-biased state, there is a minimal amount of time during which the current is still flowing in the wrong direction. This helps to prevent damage to the circuit and ensures that the device operates reliably over time.
Another important feature of the Low VF Schottky product is its high surge capability. This means that it is able to handle sudden spikes in voltage or current without being damaged. This makes it ideal for use in high-reliability applications where the device may be exposed to extreme conditions.
The Low VF Schottky product is available in two package options: TO-220F. The TO-220F is a surface-mount package that is ideal for space-constrained applications.
In addition to its impressive performance characteristics, the Low VF Schottky product is also RoHS compliant, which means that it is free from hazardous substances that could be harmful to the environment or human health. It has an operating temperature range of -55°C to +150°C, which makes it suitable for use in a wide range of operating conditions.
Overall, the Low VF Schottky product is a high-quality semiconductor device that offers fast switching speed, high efficiency, and low reverse recovery time. Its high surge capability and RoHS compliance make it ideal for use in high-reliability applications, while its two package options make it suitable for a wide range of space-constrained applications. Whether you're designing a power tool or a high-reliability circuit, the Low VF Schottky product is an excellent choice.
Features:
- Product Name: Low VF Schottky
- Operating Temperature Range: -55°C To +150°C
- Package: TO-220AB,TO-220F
- Model Number: SBT30L60FCT
- Application: Power Supply Units, Motor Drives, RF Amplifiers, Wireless Communications
- Rohs Compliant: Rohs
- Very low forward voltage
- Inverter
- Power Supply Units
Technical Parameters:
| Technical Parameter |
Value |
| Application |
Power Supply Units, Motor Drives, RF Amplifiers, Wireless Communications |
| RoHS Compliant |
RoHS |
| Operating Temperature Range |
-55°C to +150°C |
| Model Number |
SBT30L60FCT |
| Package |
TO-220F |
| Characteristics |
Fast Switching Speed, High Efficiency, Low Reverse Recovery Time |
| Very low forward voltage |
Yes |
| Frequency changer |
No |
| High current capability |
Yes |
Applications:
Product Application Occasions and Scenarios for Lingxun's Low VF Schottky Product
The Low VF Schottky product by Lingxun, a leading brand from China, offers a reliable solution for high-reliability applications. This product is ISO9001, ISO14001, ROHS, and REACH certified, ensuring its quality and safety for use in various industries.
The Low VF Schottky product is designed for fast switching speed and high efficiency, making it ideal for power supply units, motor drives, RF amplifiers, and wireless communications. Its TO-220F packaging options provide flexibility for different application requirements.
Its operating temperature range of -55°C to +150°C makes it suitable for use in extreme environments. As for the supply, Lingxun can provide up to 600KK/year, and the minimum order quantity and price can be confirmed based on the specific part number. The packaging details and delivery time can also be confirmed based on the order.
The Low VF Schottky product is particularly useful for wireless communications, which require fast switching speed and high efficiency. Its low reverse recovery time ensures that it can switch quickly, making it suitable for wireless communication systems that require high-frequency switching.
Overall, Lingxun's Low VF Schottky product is a reliable and efficient solution for various high-reliability applications, including wireless communications. Its certifications and high supply ability make it a great choice for businesses looking for quality components for their products.
Customization:
Brand Name: Lingxun
Place of Origin: China
Certification: ISO9001, ISO14001, ROHS, REACH
Minimum Order Quantity: Confirm quantity based on part number
Price: Confirm price based on part number
Packaging Details: Confirm package based on part number
Delivery Time: Confirm
Payment Terms: T/T payment
Supply Ability: 600KK/year
Rohs Compliant: Rohs
Model Number: SBT30L60FCT
Operating Temperature Range: -55°C To +150°C
Package: TO-220F
Characteristics: Fast Switching Speed, High Efficiency, Low Reverse Recovery Time
These products are suitable for power driver, control equipment, and motor drives purposes.
Support and Services:
The Low VF Schottky product provides the following technical support and services:
- Product datasheets and application notes
- Design-in support and troubleshooting
- Product samples and evaluation boards
- Customized product development
- Reliability and failure analysis
- Environmental compliance and quality control
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
