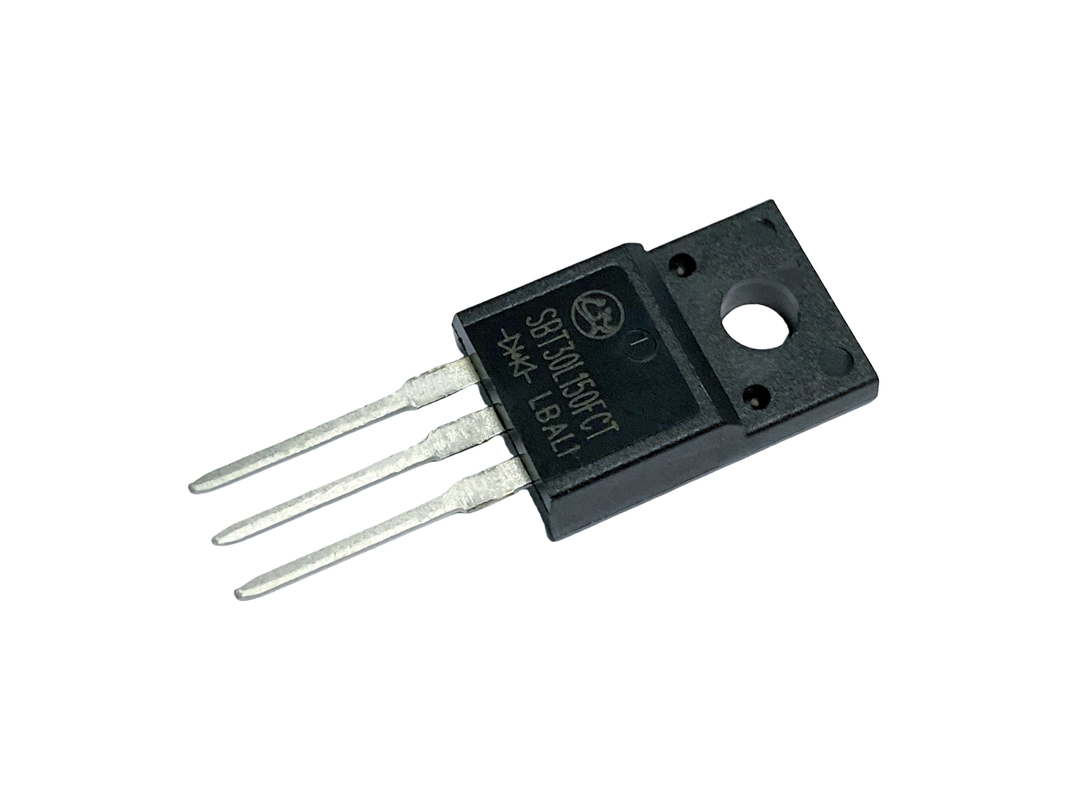

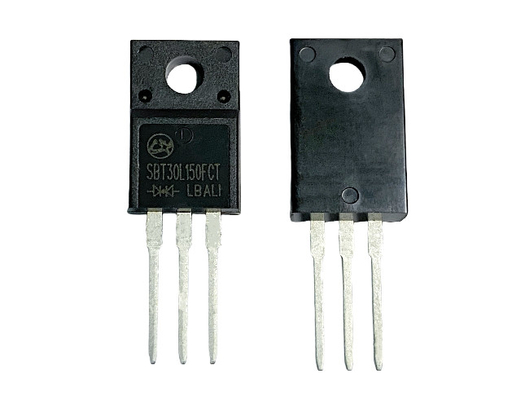

30A150V SBT30L150FCT Low VF Schottky High Efficiency For Rectifiers
Part
Number |
Package |
Die |
Io
(A) |
VBR
@IR |
VF(25℃)
@IF |
IR(25℃)
@VBR |
VF(125℃)
@IF |
IR
(125℃ |
IFSM
(A) |
Tj
(℃) |
Min
(V) |
IF
(A) |
Typ
(V) |
Max
(V) |
Typ
(uA) |
Max
(uA) |
IF
(A) |
Typ
(V) |
Typ
(mA) |
| SBT30L150FCT |
TO-220F |
2 |
30 |
150 |
20 |
0.82 |
0.88 |
0.02 |
0.5 |
7 |
- |
- |
450 |
175 |
Product Description:
The SBT Low VF Schottky product is known for its fast switching speed, high efficiency, and low reverse recovery time. This makes it an excellent choice for applications that require rapid switching, minimal power loss, and high energy efficiency.
The SBT Low VF Schottky product is also highly robust, making it a dependable option for use in demanding applications. Its robustness ensures that it can withstand challenging environmental conditions and maintain its performance over time.
Additionally, the SBT Low VF Schottky product features ultra-fast recovery diodes, which provide fast and efficient switching performance. This makes it an excellent choice for applications that require high-speed switching, such as RF Amplifiers.
The SBT Low VF Schottky product is also RoHS compliant, which means that it meets the environmental standards set by the European Union. This makes it a sustainable and eco-friendly option for customers who value environmentally conscious products.
Features:
- Product Name: Low VF Schottky
- Application: Power Supply Units,Motor Drives,RF Amplifiers,Wireless Communications
- Model Number: SBT30L150FCT
- Package: TO-220F
- Characteristics: Fast Switching Speed,High Efficiency,Low Reverse Recovery Time
- Operating Temperature Range: -55°C To +150°C
- Low Forward Voltage
- High surge capability
- High Efficiency
Technical Parameters:
| Model Number |
SBT30L150FCT |
| Characteristics |
Fast Switching Speed, High Efficiency, Low Reverse Recovery Time |
| Package |
TO-220F |
| Rohs Compliant |
Rohs |
| Operating Temperature Range |
-55°C To +150°C |
| Application |
Power Supply Units, Motor Drives, RF Amplifiers, Wireless Communications |
| High current capability |
Yes |
| Data Storage Systems |
No information provided |
| Adapter |
No information provided |
Support and Services:
The Low VF Schottky product provides a low forward voltage drop and fast switching speed, making it ideal for applications with high frequency and low voltage requirements. Our technical support team is available to provide assistance with product selection, design-in, and troubleshooting. In addition, we offer a range of services such as customization, testing, and reliability analysis to ensure our Low VF Schottky products meet your specific requirements and quality standards.
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
