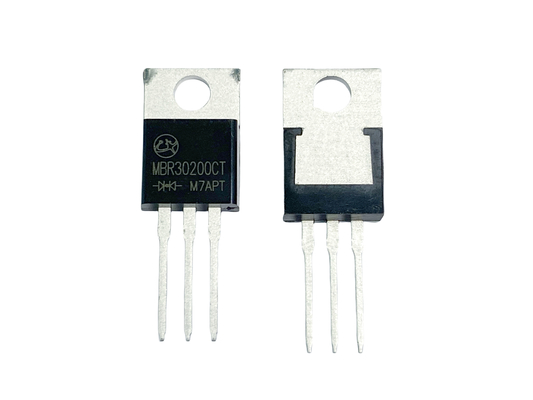

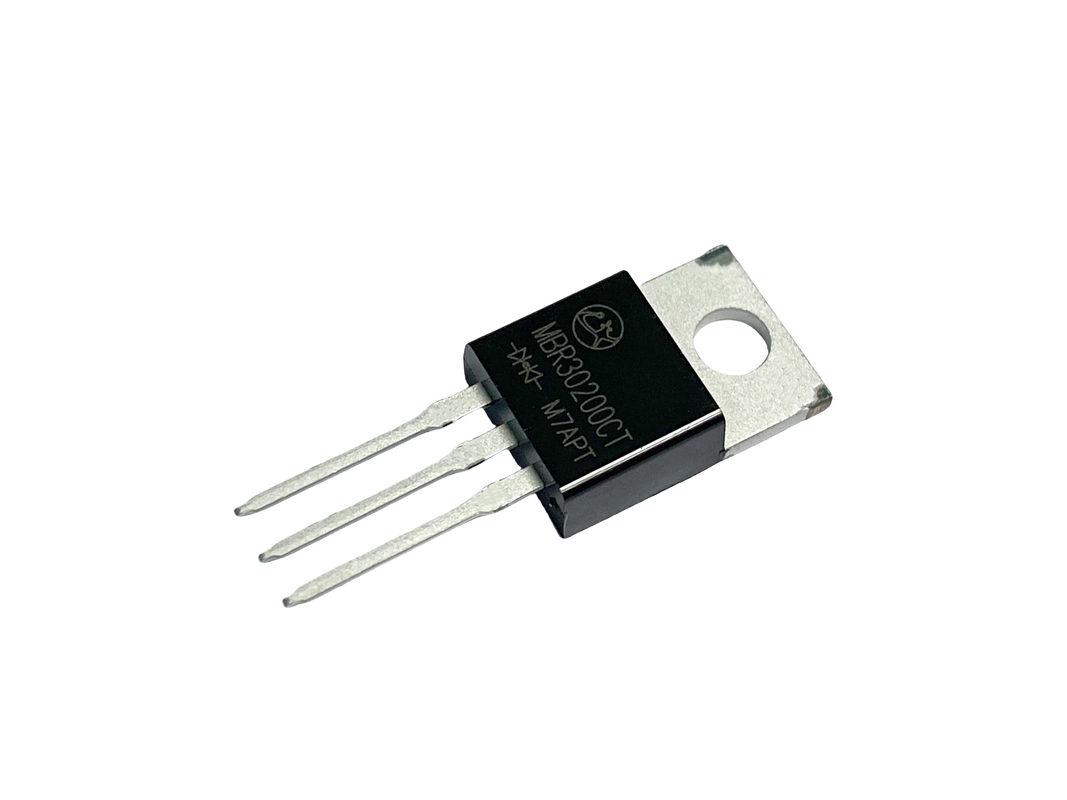

30A200V MBR30200CT Schottky Barrier Diodes With Less Susceptible TO-220AB
Part
Number |
Package |
Die |
Io
(A) |
VBR |
VF(25℃) |
IR(25℃) |
VF(125℃) |
IR
(125℃ |
IFSM
(A) |
Tj
(℃) |
| |
If
(A) |
Typ
(V) |
Max
(V) |
Typ
(uA) |
Max
(uA) |
If
(A) |
Typ
(V) |
Typ
(mA) |
| MBR30200CT |
TO-220AB |
1 |
30 |
200 |
15 |
|
0.95 |
1.0 |
5 |
|
|
|
180 |
175 |
Product Description:
One of the key features of the MBR series is their low forward voltage drop. This means that they are able to operate with minimal power loss, making them an efficient choice for a wide range of applications. Additionally, these diodes have a high operating junction temperature, which allows them to operate reliably even in challenging environments.
Whether you are designing a new lighting system, developing a power supply, or working on a high-frequency switch, the MBR series of Schottky Diodes is a versatile and cost-effective choice. So why wait? Order your MBR30200CT Schottky Diodes today and start bringing your designs to life!
Features:
- Product Name: Schottky Barrier Diodes
- Package: TO-220AB
- Model Number: MBR30200CT
- Application: Adapters, Lighting, On-board DC/DC Converters, High Frequency Switch Power Supply, Free Wheeling Diodes, Polarity Protection Applications
- Forward Voltage: Low VF
- Cost: Low Cost
- Features:
- Low power loss
- Rectifiers
- Polarity protection applications
Technical Parameters:
| Attribute |
Description |
| Package |
TO-220AB |
| Model Number |
MBR30200CT |
| Type |
Schottky Diodes |
| Cost |
Low Cost |
| Application |
Adapters, Lighting, On-board DC/DC Converters, High Frequency Switch Power Supply, Free Wheeling Diodes, Polarity Protection Applications |
| Forward Voltage |
Low VF |
Applications:
The Lingxun Schottky Barrier Diodes have a low forward voltage (VF) and come in a TO-220AB package. The model number is MBR. These diodes have a low cost, making them an excellent choice for various applications that require high-quality diodes at a reasonable price.
The Lingxun Schottky Barrier Diodes have a wide range of applications, including adapters, lighting, on-board DC/DC converters, high-frequency switch power supplies, free-wheeling diodes, and polarity protection applications. These diodes are particularly useful in applications that require frequency multiplication, such as satellite communication equipment.
LED lighting is another area where Lingxun Schottky Barrier Diodes can be used effectively. These diodes help reduce energy consumption and provide higher efficiency, making them ideal for use in LED lighting fixtures. They also help reduce the overall heat generated by the fixture, which increases the lifespan of the LED.
The Lingxun Schottky Barrier Diodes are an excellent choice for applications that require high-quality diodes at a reasonable price. With a supply ability of 600KK/year and various packaging options available, these diodes can be customized to meet the specific requirements of the buyer. The delivery time and payment terms can be confirmed based on the part number and quantity ordered.
Customization:
Brand Name: Lingxun
Place of Origin: China
Certification: ISO9001, ISO14001, ROHS, REACH
Minimum Order Quantity: Confirm quantity based on part number
Price: Confirm price based on part number
Packaging Details: Confirm package based on part number
Delivery Time: comfirm
Payment Terms: T/T payment
Supply Ability: 600KK/year
Cost: Low Cost
Forward Voltage: Low VF
Application: Adapters, Lighting, on-board DC/DC converters, High Frequency Switch Power Supply, Free Wheeling Diodes Polarity Protection Applications, frequency multiplication, Low power loss
Type: Schottky Diodes
Model Number: MBR30200CT
Support and Services:
Our Schottky Barrier Diodes are designed to provide low forward voltage drop and fast switching performance. We offer a wide range of diodes with various voltage ratings, forward current ratings, and package options to meet your specific design requirements.
Our technical support team is available to assist with any questions or issues you may have with our Schottky Barrier Diodes. We provide extensive product documentation, including datasheets, application notes, and reference designs, to ensure that you have all the information you need to successfully integrate our diodes into your design.
We also offer a range of services to support our Schottky Barrier Diodes, including custom packaging, testing, and screening options. Contact us to learn more about how we can help meet your specific requirements.
