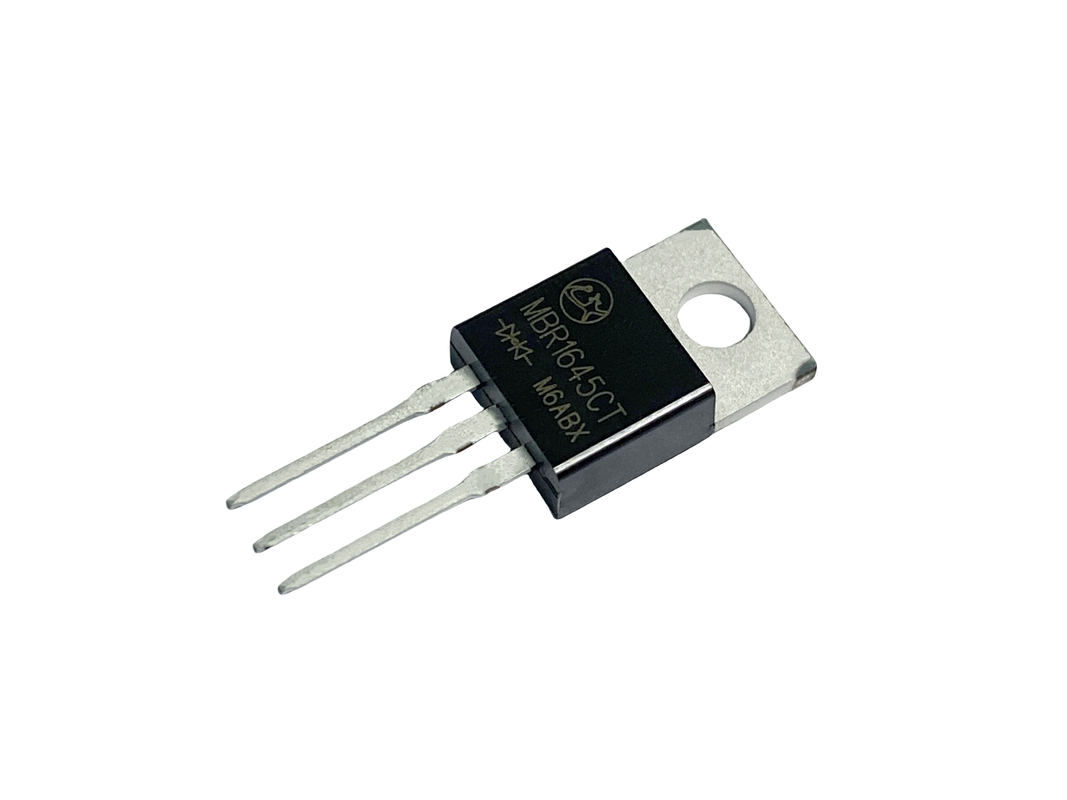

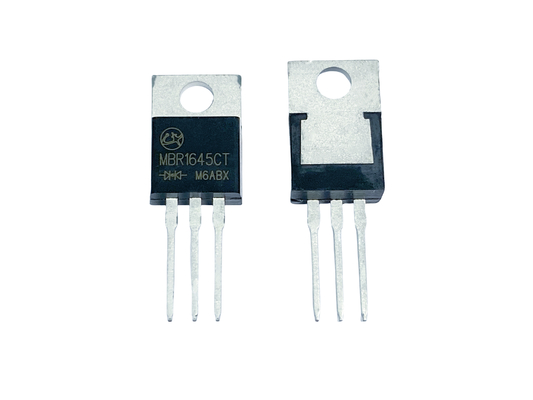

16A45V MBR1645CT High Frequency Switch Power Supply Schottky Barrier Diodes
Part
Number |
Package |
Die |
Io
(A) |
VBR |
VF(25℃) |
IR(25℃) |
VF(125℃) |
IR
(125℃ |
IFSM
(A) |
Tj
(℃) |
| |
If
(A) |
Typ
(V) |
Max
(V) |
Typ
(uA) |
Max
(uA) |
If
(A) |
Typ
(V) |
Typ
(mA) |
| MBR1645CT |
TO-220AB |
1 |
16 |
45 |
8 |
0.55 |
0.6 |
22.0 |
50 |
3 |
- |
- |
200 |
150 |
Product Description:
One of the key benefits of the MBR Schottky Barrier Diodes is their low cost. This makes them an excellent choice for applications where cost is a primary concern but performance cannot be compromised. Despite their low cost, these diodes still offer excellent performance characteristics, including high efficiency and reliability.
Another benefit of the MBR Schottky Barrier Diodes is their versatility. They can be used in a wide range of applications, including power supplies, satellite communication equipment, and solar cells. This makes them an excellent choice for engineers and designers who need a single, flexible component that can be used in a variety of systems.
Overall, the MBR Schottky Barrier Diodes are an excellent choice for anyone who needs a cost-effective, reliable, and versatile Schottky diode. With their low forward voltage drop and high switching speed, they are ideal for use in a variety of applications, including high-frequency switch power supplies, adapters, lighting, on-board DC/DC converters, and free-wheeling diodes polarity protection applications. And with their standard TO-220AB package, they are easy to use and integrate into a wide range of systems.
Features:
- Product Name: Schottky Barrier Diodes
- Package: TO-220AB
- Type: Schottky Diodes
- Cost: Low Cost
- Forward Voltage: Low VF
- Application: Adapters, Lighting, On-board DC/ DC Conerters High Frequency Switch Power Supply, Free Wheeling Diodes Polarity Protection Applications
- High current capability: Yes
- LED lighting: Yes
- Rectifiers: Yes
Technical Parameters:
| Application |
Adapters, Lighting, On-board DC/ DC Converters, High Frequency Switch Power Supply, Free Wheeling Diodes, Polarity Protection Applications |
| Package |
TO-220AB |
| Forward Voltage |
Low VF |
| Type |
Schottky Diodes |
| Cost |
Low Cost |
| Model Number |
MBR1645CT |
Applications:
The Lingxun Schottky Barrier Diodes are ideal for use in lighting applications where low VF is required to minimize power loss. The diodes also have a fast switching speed, making them well-suited for high-frequency circuits. Additionally, their low cost makes them a popular choice for cost-sensitive applications.
The MBR model number represents a TO-220AB package, which is commonly used in power supplies and data storage systems. The Schottky Barrier Diodes have a high reverse saturation current, making them suitable for use in power rectification circuits. The low VF and low leakage current of these diodes also make them ideal for use in battery charging and switching circuits.
Delivery time for the Lingxun Schottky Barrier Diodes is confirmed based on the part number and quantity ordered. Payment terms for the diodes are T/T payment, and Lingxun offers a reliable supply chain to ensure timely delivery. Whether you need these diodes for lighting applications, data storage systems or power supplies, Lingxun Schottky Barrier Diodes are a dependable solution that offer high performance at a low cost.
Customization:
Brand Name: Lingxun
Place of Origin: China
Certification: ISO9001,ISO14001,ROHS,REACH
Minimum Order Quantity: Confirm quantity based on part number
Price: Confirm price based on part number
Packaging Details: Confirm package based on part number
Delivery Time: Confirm
Payment Terms: T/T payment
Supply Ability: 600KK/year
Application: Adapters, Lighting, On-board DC/ DC Conerters High Frequency Switch Power Supply, Free Wheeling Diodes Polarity Protection Applications, Rectifiers, Low power losses, RF Switches
Forward Voltage: Low VF
Cost: Low Cost
Type: Schottky Diodes
Model Number: MBR1645CT
Support and Services:
The Schottky Barrier Diodes product technical support and services include:
- In-depth technical documentation and datasheets
- Online support resources, including FAQs and troubleshooting guides
- Application notes and design guides for product integration
- Technical training and seminars for engineers and designers
- Custom design and development services for specific project needs
- Quality and reliability testing and certification for all products
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
