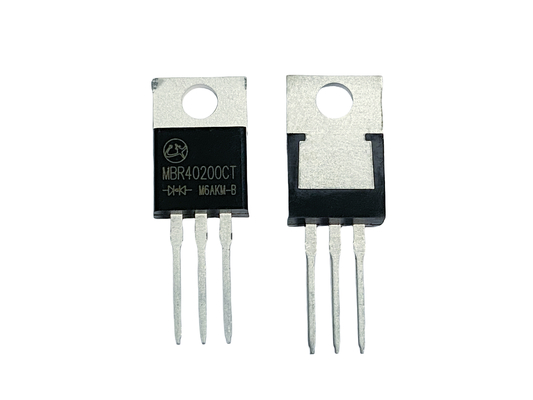

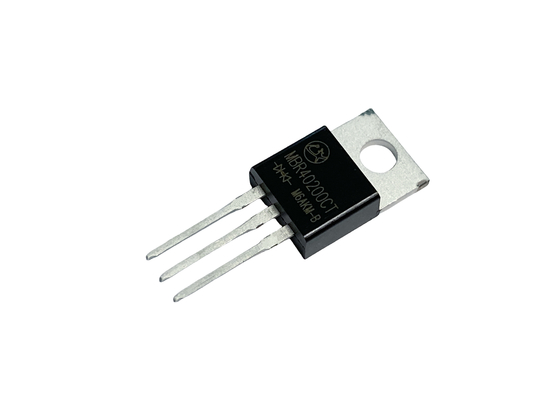

40A200V MBR40200CT Schottky Barrier Diodes with Low Forward Voltage
Part
Number |
Package |
Die |
Io
(A) |
VBR |
VF(25℃) |
IR(25℃) |
VF(125℃) |
IR
(125℃ |
IFSM
(A) |
Tj
(℃) |
| |
If
(A) |
Typ
(V) |
Max
(V) |
Typ
(uA) |
Max
(uA) |
If
(A) |
Typ
(V) |
Typ
(mA) |
| MBR40200CT |
TO-220AB |
2 |
40 |
200 |
20 |
0.84 |
0.90 |
2.0 |
10 |
7 |
- |
- |
450 |
150 |
Product Description:
One of the key features of the Schottky Barrier Diodes product is its low forward voltage (VF). This means that it operates with minimal power loss, making it an ideal choice for energy-efficient applications. In addition, the device has a fast switching speed, which is beneficial in applications where speed is critical, such as in solar cells and modems.
The Schottky Barrier Diodes product is a type of Schottky diode, which is a semiconductor device that has a low forward voltage drop and a very fast switching action. This makes it an ideal choice for use in high-frequency applications, where fast switching speeds are required. The Schottky Barrier Diodes product is also known for its low reverse recovery time, which is the time it takes for the diode to switch from the conducting to the non-conducting state.
The Schottky Barrier Diodes product is available under the model number MBR, which is a popular choice among engineers and designers. The device is widely used in a variety of applications, including solar cells, fast-switching power supplies, and modems. It is also commonly used in free-wheeling diodes and polarity protection applications.
Features:
- Product Name: Schottky Barrier Diodes
- Application: Adapters, Lighting, On-board DC/DC Converters, High Frequency Switch Power Supply, Free Wheeling Diodes, Polarity Protection Applications
- Cost: Low Cost
- Package: TO-220AB
- Model Number: MBR40200CT
- Forward Voltage: Low VF
- Common cathode structure
- High frequency switch power supply
Technical Parameters:
|
Attribute
|
Value
|
| Type |
Schottky Diodes |
| Forward Voltage |
Low VF |
| Model Number |
MBR40200CT |
| Package |
TO-220AB |
| Cost |
Low Cost |
| Application |
Adapters, Lighting, On-board DC/DC Converters, High Frequency Switch Power Supply, Free Wheeling Diodes, Polarity Protection Applications |
Applications:
Our Schottky Diodes, available in the MBR model number, are perfect for a range of applications, including:
- Adapters
- On-board DC/DC converters
- High frequency switch power supply
- Free wheeling diodes
- Polarity protection applications
- LED lighting
With a supply ability of 600KK/year, we can meet your needs for any quantity of Schottky Diodes. Contact us to confirm the minimum order quantity and price for your desired part number, as well as packaging details and delivery time.
Trust Lingxun for your Schottky Barrier Diode needs - our products are reliable, cost-effective, and perfect for a variety of applications.
Payment terms are T/T payment. Choose Lingxun for your Schottky Diode needs and enjoy the peace of mind that comes with working with a trusted and certified manufacturer.
Support and Services:
The Schottky Barrier Diodes product technical support and services include:
- Detailed datasheets and application notes available on our website
- Technical support from our experienced engineers via email or phone
- Custom design and development services for specialized applications
- Comprehensive testing and quality control procedures to ensure product reliability
- Collaborative partnerships with customers to provide tailored solutions
- On-time delivery and responsive customer service
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
