Product Details:
|
| Type: | N | Gate-Source Voltage (Vgs): | ±30V |
|---|---|---|---|
| ID: | 28A | VDSS: | 500V |
| RDSON-typ （@VGS=10V）: | 0.185Ω | Model Nume: | CS28N50A6 |
| Highlight: | Switch Mode Power Supply MOSFET,28A500V MOSFET,High Breakdown Voltage MOSFET |
||

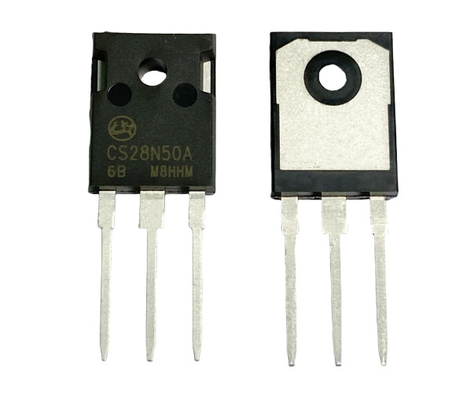

28A500V CS28N50A6 High Breakdown Voltage MOSFET For Switch Mode Power Supply
| Part Number |
Package | Channel | ID (A) |
VDSS (V) |
VGSS (V) |
VGS(th)(V) | RDS(ON) 10V(mΩ) |
Qg (nC) |
Ciss (pF) |
||
| Min. | Min. | Min. | Max. | Typ | MAX | Typ | Typ | ||||
| CS28N50A6 | TO-247 | N | 28 | 500 | ±30 | 2 | 4 | 200 | 240 | ||
With 100% avalanche tested technology, this MOSFET can withstand high voltages and protect against voltage spikes, ensuring maximum reliability and safety. It also features a low Ciss, which means less power loss and better efficiency. Additionally, its fast switching speed makes it suitable for high-frequency applications.
This MOSFET is a high voltage device, making it perfect for applications that require a high voltage range. Its advanced MOSFET technology allows for low loss, resulting in better overall performance.
Overall, our high voltage MOSFET is an excellent choice for industrial and electric machine applications that require efficient and reliable power management. Its low ON resistance, 100% avalanche tested technology, low Ciss, and fast switching speed make it the ideal solution for high voltage applications that require low loss and high efficiency.
Additional features:
| Application | Power Switch Circuit Of Adaptor And Charger, Switch Mode Power Supply, Uninterruptible Power Supply, Power Factor Correction, Welding Machine, Motor Control, Adaptors |
|---|---|
| Model Number | CS28N50A6 |
| Technology | MOSFET |
| Type | N |
| High Light | Low ON Resistance, 100% Avalanche Tested, Low Ciss, Fast Switching |
| Gate-Source Voltage (Vgs) | ±30V |
One of the key applications of the Lingxun high voltage MOSFET is in the power switch circuit of adapters and chargers. This MOSFET is designed to handle high voltage and power, making it ideal for use in these applications. It can also be used in switch mode power supplies, uninterruptible power supplies, and power factor correction circuits.
In addition to these applications, the Lingxun MOSFET can be used in a variety of other scenarios. For example, it can be used in electric tricycles as a power switch for the motor. It can also be used in industrial automation devices as a power switch for various components.
The MOSFET is designed using advanced MOSFET technology, which ensures low ON resistance and fast switching. It is also 100% avalanche tested, ensuring its reliability and durability. The low Ciss of this MOSFET makes it highly efficient, which is important in applications where power consumption is a concern.
With a supply ability of 600KK/year and a delivery time to be confirmed, the Lingxun high voltage MOSFET is a reliable and efficient option for any project. Payment terms are T/T payment, making it easy for customers to purchase.
Place of Origin: China
Certification: ISO9001, ISO14001, ROHS, REACH
Minimum Order Quantity: Confirm quantity based on part number
Price: Confirm price based on part number
Packaging Details: Confirm package based on part number
Delivery Time: Confirm
Payment Terms: T/T payment
Supply Ability: 600KK/year
Model Number: CS28N50A6
Voltage: High Voltage
Type: N
Gate-Source Voltage (Vgs): ±30V
Application: Power Switch Circuit Of Adaptor And Charger, Switch Mode Power Supply, Uninterruptible Power Supply, Power Factor Correction
Customization Services:
Our High Voltage MOSFET product is backed by our expert Product Technical Support and Services team who are dedicated to providing our customers with the best possible experience. Our team offers a range of services to ensure that our customers are fully supported, including:
Our goal is to provide our customers with a reliable and efficient experience when using our High Voltage MOSFET product. If you have any questions or concerns, please do not hesitate to reach out to our Product Technical Support and Services team.
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
