Product Details:
|
| ID: | 20A | VDSS: | 650V |
|---|---|---|---|
| RDSON-typ （@VGS=10V）: | 0.38Ω | Type: | N |
| Model Number: | CS20N65A6 | Gate-Source Voltage (Vgs): | ±30V |
| Highlight: | 100% Avalanche Tested High Voltage MOSFET,CS20N65A6 High Voltage MOSFET,20A650V High Voltage MOSFET |
||

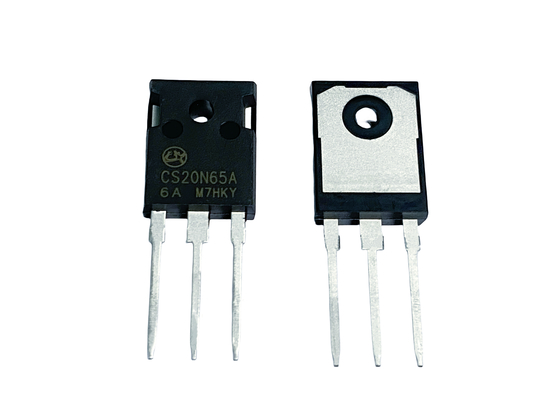

20A650V CS20N65A6 N Channel High Voltage MOSFET 100% Avalanche Tested
| Part Number |
Package | Channel | ID (A) |
VDSS (V) |
VGSS (V) |
VGS(th)(V) | RDS(ON) 10V(mΩ) |
Qg (nC) |
Ciss (pF) |
||
| Min. | Min. | Min. | Max. | Typ | MAX | Typ | Typ | ||||
| CS20N65A6 | TO-247 | N | 20 | 650 | ±30 | 2 | 4 | 420 | 460 | ||
One of the most significant advantages of this MOSFET is its low ON resistance. This attribute makes it an excellent choice for power switch circuits in adaptors and chargers, switch mode power supplies, uninterruptible power supplies, and power factor correction applications. Its low Ciss and fast switching capability also make it ideal for lighting applications, welding machines, and other applications that require a high voltage MOSFET.
The High Voltage MOSFET product is designed to handle high voltage applications with ease, making it a reliable and efficient option for various industrial and commercial uses. It is also 100% avalanche tested, which means it can withstand high voltage spikes without being damaged, making it an incredibly durable and long-lasting component.
If you are looking for a high voltage MOSFET that can handle different applications, the High Voltage MOSFET product is an excellent choice. Its low ON resistance, fast switching, and 100% avalanche tested attributes make it an ideal option for adaptors, switch mode power supplies, uninterruptible power supplies, power factor correction, lighting applications, welding machines, and much more.
| Voltage | High Voltage |
| Application | Power Switch Circuit Of Adaptors And Chargers, Switch Mode Power Supply, Uninterruptible Power Supply, Power Factor Correction |
| High Light | Low ON Resistance, 100% Avalanche Tested, Low Ciss, Fast Switching |
| Gate-Source Voltage (Vgs) | ±30V |
| Model Number | CS20N65A6 |
| Type | N |
This High Voltage MOSFET is suitable for power switch circuits of adaptors and chargers, switch mode power supplies, uninterruptible power supplies, and power factor correction. Its low ON resistance, 100% avalanche tested, low Ciss, and fast switching make it a high-performance option. The gate-source voltage is ±30V, and it uses MOSFET technology with an N-type configuration.
It can also be used in photovoltaic applications and high-efficiency systems.
Our High Voltage MOSFET is designed to handle high voltage applications with a Gate-Source Voltage (Vgs) of ±30V. This MOSFET technology is perfect for power switch circuits of adaptors and chargers, switch mode power supplies, uninterruptible power supplies, power factor correction, and other industrial applications.
Our High Voltage MOSFET has been certified with ISO9001, ISO14001, ROHS, and REACH, ensuring that it is made with high-quality materials and processes. The minimum order quantity and price for this product depends on the part number, and the packaging details and delivery time can also be confirmed based on the part number. We have a supply ability of 600KK/year, ensuring that you'll always have access to the products you need.
Our High Voltage MOSFET is perfect for various lighting applications, power supply units, and industrial needs. You can trust Lingxun's High Voltage MOSFET to provide reliable and stable performance for your power circuit applications.
For payment terms, we accept T/T payment, which is a secure and convenient payment method. If you're interested in our High Voltage MOSFET product, please don't hesitate to contact us for more information. Our helpful team is always ready to assist you.
Brand Name: Lingxun
Place of Origin: China
Certification: ISO9001, ISO14001, ROHS, REACH
Minimum Order Quantity: Confirm quantity based on part number
Price: Confirm price based on part number
Packaging Details: Confirm package based on part number
Delivery Time: comfirm
Payment Terms: T/T payment
Supply Ability: 600KK/year
Voltage: High Voltage
Gate-Source Voltage (Vgs): ±30V
Type: N
Model Number: CS20N65A6
High Light: Low ON Resistance, 100% Avalanche Tested, Low Ciss, Fast Switching
Applications: Industrial, DC-DC Converters
Our High Voltage MOSFET product comes with comprehensive technical support and services to ensure that our customers can maximize the performance of the product. Our technical support includes:
In addition to our technical support, we also offer a range of services to our customers to ensure that their experience with our High Voltage MOSFET product is seamless and hassle-free. Our services include:
Our dedicated team of experts is always available to assist our customers with any technical or service-related inquiries. We pride ourselves on providing the highest quality technical support and services in the industry.
Q1.Who are we?
A:We are based in Guangdong, China,factory start from 2012,is a national high-tech enterprise that focuses on packaging and testing of power semiconductor devices.currently has more than 180 has more than 180 employees and more than 10000 square meters area.We provide over 600 KK high-quality power semiconductor device per annum.
Q2.What is your product line?
A:Existing main production lines include Schottky,low VF Schottky,Fast Recovery Diodes, High Voltage Mosfet, Medium and Low Voltage Mosfet, Super Junction Mosfet, IGBT, SiC shottkly Barrier Diode and Sic Mosfet etc.
Q3.What is your product’s application?
A:Widely used in various fields such as power adapters,LED lighting, brushless motors, lithium battery management, inverters,energy storage and charging pile, etc.
Q4.What is your competitive advantage?
A:1.Strong capabilities factory.We have our own assembly and test factory,fixed investment exceeding 70 million yuan.Having the top automated Wire Bond equipment,provide over 600KK semiconductor power device annually.
2. Service advantages,A stable supply system,Sustainable and stable supply of products.Our own laboratory can quickly and effectively cooperate with validation.
3. Quality assurance,The most mainstream MES system digital factory in the field of packing and testing, certified by ISO9001 2015 version and IATF16949.
4. Product Upgrading,Continuously research and develop new specifications and packaging shapes to meet the application needs of more customers.
Q5.What is your terms of packing?
A:Usually,different packages have different packing.TO-252/263 is reel+sealed bag+inner box+carton.TO-220/247 is tube+inner box+carton.
Q6.What is your MOQ?
A:We provide samples for each item.MOQ depends on your order quantity.
Q7.What is your guarantee quality?
A: Offer samples for testing. Ensure that the bulk product is consistent with the sample. If there is any change, the sample will be provided again for testing. 100% test and check all product before delivery.
Q8.Do you accept customization?
A:Yes,send me your requirement!
Q9.How to contact you?
A:Send your inquire details in the below,Click”Send”,NOW!!!
Any other more questions, please feel free to contact us. We are always at your service !
