Product Details:
|
| ID: | 5A | Gate-Source Voltage (Vgs): | ±30V |
|---|---|---|---|
| VDSS: | 500V | Type: | N |
| RDSON-typ （@VGS=10V）: | 2.4Ω | ||
| Highlight: | 5A500V High Voltage MOSFET,100% Avalanche Tested High Voltage MOSFET,CS5N50A2 High Voltage MOSFET |
||

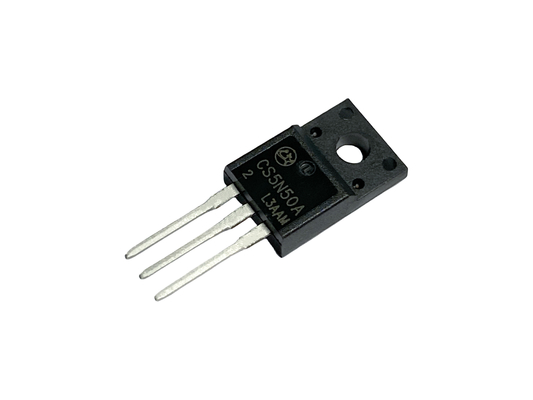

5A500V CS5N50A2 High Voltage MOSFET 100% Avalanche Tested N Channel for High Voltage Applications
| Part Number |
Package | Channel | ID (A) |
VDSS (V) |
VGSS (V) |
VGS(th)(V) | RDS(ON) 10V(mΩ) |
Qg (nC) |
Ciss (pF) |
||
| Min. | Min. | Min. | Max. | Typ | MAX | Typ | Typ | ||||
| CS5N50A2 | TO-220F | N | 5 | 500 | ±30 | 2 | 4 | 1510 | 1600 | 15 | 545 |
The Gate-Source Voltage (Vgs) of this MOSFET is ±30V, which makes it easy to control the device and ensures safe operation. This MOSFET is of the N-type, which makes it easy to use in various applications. The Model Number for this MOSFET is CS, and it is known for its reliability and durability.
One of the most significant advantages of this MOSFET is its low ON resistance, which makes it an ideal choice for applications where low power loss is essential. This feature also ensures that the device operates at a low temperature, which means that it does not require any active heat dissipation. This makes it an ideal choice for use in LED driver applications, where heat dissipation can be a significant challenge.
Another essential feature of this MOSFET is that it is 100% avalanche tested, which means that it can handle high voltage spikes without damage. This makes it an ideal choice for use in power supply units, where voltage spikes can occur frequently.
The MOSFET also has a low Ciss value, which makes it easy to switch on and off quickly. This feature makes it an ideal choice for applications that require fast switching, such as LED drivers.
In conclusion, the High Voltage MOSFET product is an excellent choice for applications that require a high voltage rating. Its low ON resistance, 100% avalanche tested, low Ciss, and fast switching capabilities make it an ideal choice for applications such as power supply units, LED drivers, and others.
| Model Number | CS5N50A2 |
|---|---|
| Application | Power Switch Circuit Of Adaptor And Charger, Switch Mode Power Supply,Uninterruptible Power Supply,Power Factor Correction |
| Type | N |
| High Light | Low ON Resistance,100% Avalanche Tested,Low Ciss ,Fast Switching |
| Voltage | High Voltage |
| Gate-Source Voltage (Vgs) | ±30V |
This High Voltage MOSFET is suitable for LED driver, new energy, and High Switching Speed applications.
The CS5N50A2 MOSFET is manufactured in China, and has been certified with ISO9001, ISO14001, ROHS, and REACH. The minimum order quantity and pricing vary based on the specific part number and packaging details, and the delivery time can be confirmed upon order. With a supply ability of 600KK/year, we can meet your needs for high-quality MOSFETs.
The CS5N50A2 MOSFET is 100% avalanche tested, ensuring its reliability and safety during operation. Its low Ciss and fast switching speed make it an ideal choice for PWM in motor control. Additionally, it is commonly used in battery chargers due to its high efficiency and low power consumption.
Whether you need a high voltage MOSFET for a power switch circuit, motor control, or battery charger, the Lingxun CS5N50A2 MOSFET is a top choice. With its reliable performance, certifications, and high supply ability, you can trust this product to meet your needs.
